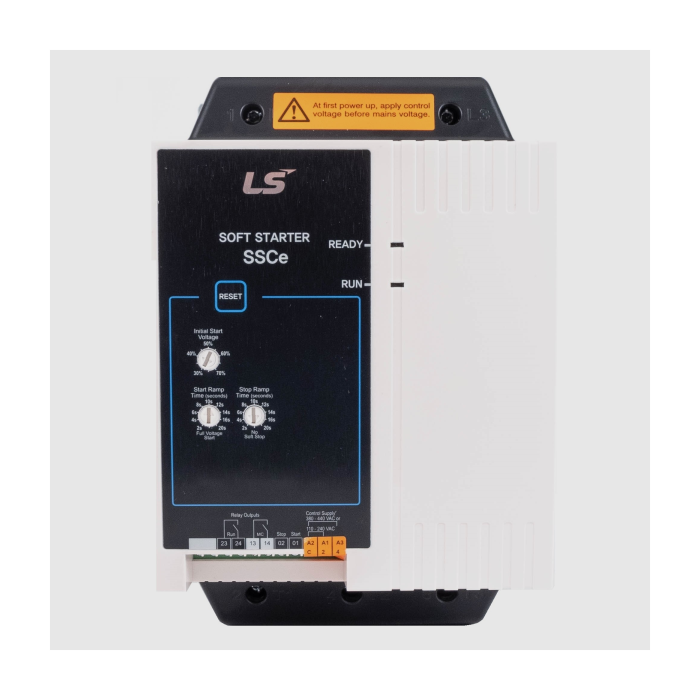

7.5 kW 18A FLC Basic Economic Type Built-in Bypass 200 - 440VAC Supply 24V
Description:
- A soft starter may provide steady motor performance and is a cost-effective and efficient solution.
- With LS's broad knowledge and expertise, we offer a solution to improve operational effectiveness while reducing energy costs.
Features:
- Ultra compact design (Built-in bypass)
- IEC/UL/KC Standards
- Easy operation & control
- Allows for fast diagnosis of a trip via two LEDs.
- Suitable for mounting in a switchboard.
Specifications:
- 7.5kW Soft Starter
- Economic
- Analogue Ctrl
- 18A FLC
- Built-in Bypass Contactor
- Input Voltage 200 ~ 440Vac
- Control Voltage 24Vac/dc.
- Analogue Settings
- Without Motor Protection
- Power: Normal duty: 7,5 kW 18A 400 VAC, Heavy Duty: 7,5 kW 17A 400 VAC.
- Main Voltage: 110~240 VAC (+10/-15%) or 380~440 VAC (+10/-15%)
- Rated Output Current: 18 A
- Control supply: 110~240 VAC (+10%/-15%)
- Start current: 4 x Inom.
- Start time: 1-20s (Adjustable)
- Operating temperature: -10°C to +60°C
- Size: 98 x 201 x 165 mm (W x H x D)
- Protection class: IP20
| Brand | LS Electric |
|---|
