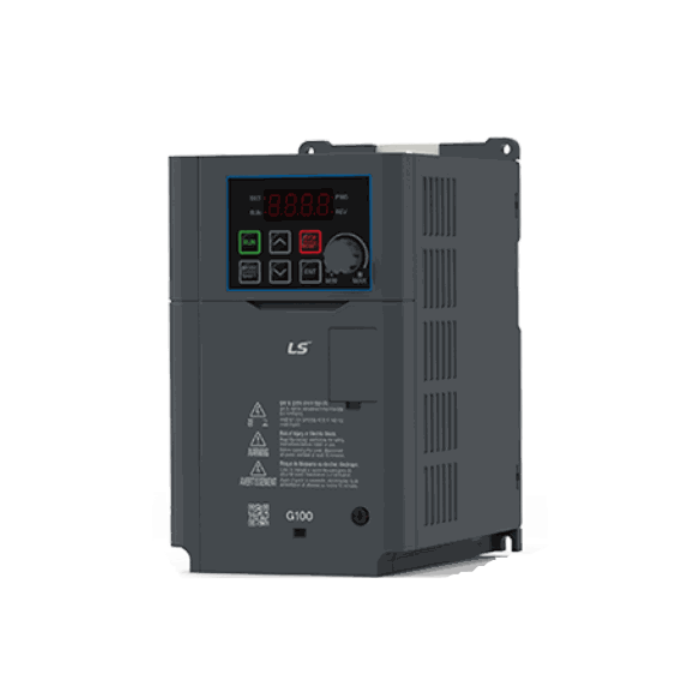

G100 General Drive 7.5kW 3 Ph 380V Heavy Duty Built-in LED Keypad pot. brake chopper RS-485
Description:
- The LS Electrical G100/G100C General AC Drive series provides strong and dependable motor control solutions and is intended for high-performance industrial applications.
- These drives have power ratings ranging from 0.4kW to 22kW (equal to 1/2 to 30HP), and they handle three-phase input voltages of 200-240V and 380-480V.
- The G100C model offers improved performance and user-friendly features, while the G100 series boasts sensor-less vector control, which offers accurate and effective motor management.
- Both models meet UL 61800-5-1 requirements and are constructed with a MIL217Plus-based design for enhanced dependability and durability.
- With options for DIN rail mounting and Modbus connection for a smooth integration into current systems, the drives also provide simple installation and maintenance.
Specifications:
- The G100 inverter supports both PNP (Source) and NPN (Sink) modes for sequence
- Inputs at the terminal
- Built-in Potentiometer
- Remote Keypad
- Smart Copier
- Fieldbus Options
- Built-in 2 Relay
- DIN rail Mount (Below 4kW)
- Fan Replacement
- I/O Terminal (5mm)
- Operation Group
- General Drive - 7.5kW 3 Ph 380-480V AC
- Built-in RS-485
- Simple PLC function
- STO
- Multi I/O
- Brake Unit
- Overall Outside Dimensions: 180(w) x 220(h) x 144(d) mm
- Categories: G100 - Standard Type, No EMC Filter, (Built to UL 61800-5-1 Standard)
- G100 Heavy Duty, Din Mountable 0.4 ~ 22 kW, Potentiometer, LED Keypad, No EMC
| Brand | LS Electric |
|---|
