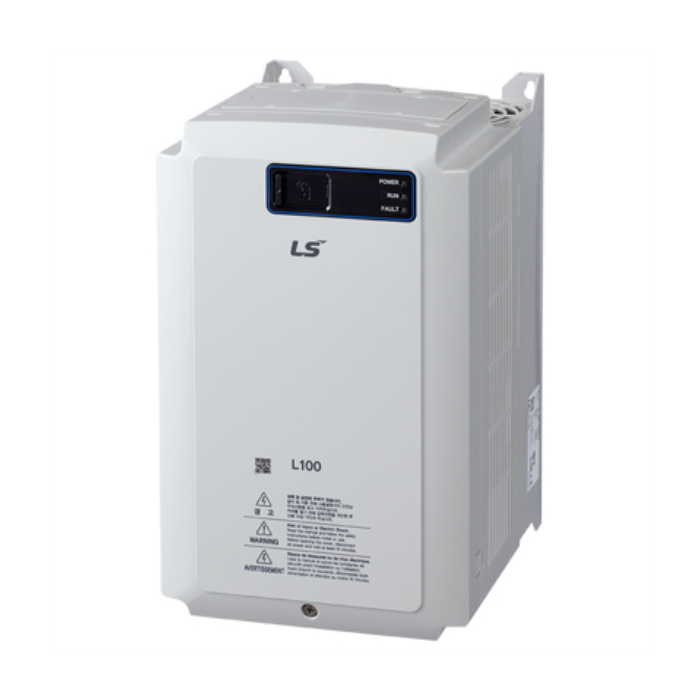

7.5kW 3-Ph 380VAC High Spec. Elevator Drive. IM / PM Motors. Encoder Options.
Description:
- For lifting applications, the L100 series LS frequency inverter is the best option.
- Best-in-class performance is provided by the LS Electric L100 series, which is optimized for load lifting and elevators.
- The L100 offers vital features and options with size-optimized solutions for these applications, significantly increasing customer value.
- Using a 3D design method and heat dissipation analysis, size was decreased in addition to improving performance.
Specifications:
- Power: 7.5 kW 400V
- Voltage Input: 3 phase 380 - 480V ac (-15% to +10%) 50 - 60 Hz (±5%)
- Voltage Output: 3 phase 380 - 480V
- Rated Output Current: 16 A
- Heavy Duty: 150% / 1min. 200% / 4 sec.
- Output frequency: 0-120 Hz.
- V/F 0-120 Hz
- Slip compensation 0-120 Hz - Sensor Vector (IM. PM)
- Built-in CAN open RS 485
- Safety: EN ISO 13849-1 PLd EN 61508 SIL2 (EN60204-1 Cat 0)
- Built-in EMC Filter C2 (Class B)
- IP00s
- Dimension: 160x232x180 W x H x D
- Operating temperature: -10 °C to +50 °
Features:
- Superior vector control with exceptional performance.
- Accessible across a range of load conditions (control over both IM and PM).
- Control that is fluid and accurate is due to an enhanced voltage, speed, and flux control algorithm.
- Quick installation due to simple control gain setting and enhanced autotuning (PM/IM rotational auto-tune, PM/IM stationary auto-tune).
- Anti-rollback and load cellules.
- Emergency battery operation (in case of a power outage).
- Automatic search for light loads.
- Multistep speed control has been optimized for a short floor operation pattern.
- I/O support for elevators.
- Anti-hunting regulator.
- Strong noise reduction and a built-in safety feature.
- LED status for tracking operations.
- Dynamic brake circuit integrated in.
- Removable terminal for easy maintenance.
- Easy replacement of the cooling fan.
| Brand | LS Electric |
|---|
