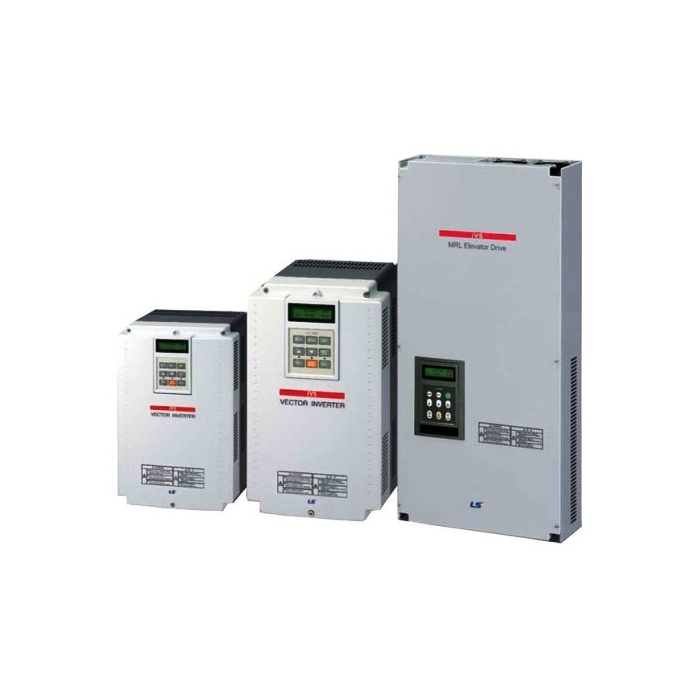

7.5kW MRL AC380-460V 3 Phase Built-in Dynamic braking unit
iV5L Series:
- This series achieves extremely fine vector control throughout the operational region, and its exceptionally precise speed control ensures excellent control stability in the controls of the elevator system and crane continuous line.
- Precise torque and speed control Precise management using the SIN/COS encoder PM Control without sensors Autotuning (when stationary) Process/Droop/Draw PID Control of the brakes.
- With its user-friendly keypad and detachable terminal blocks, it is simple to use.
- Numerous communication protocols, including Profibus-DP CC-Link, Device Net Profibus-RTU, and LS485 Modbus-RTU.
Specifications:
- Power: 7.5 kW
- Voltage Input: 3 phase 380 - 480V AC (-15% to +10%) 50 - 60 Hz (±5%)
- Voltage Output: 3 phase 380 - 480V
- Rated Output Current: 16 A
- Overload capacity: 150% / 1 minute.
- Output Frequency: 0 – 400 Hz
- Operating temperature: -10 °C to +40 °
- built-in Dynamic braking transistor
- 0~3600rpm
- Encoder (PG) Feedback for 5/12/15V
- IP20
Specifications of iV5 MRL Series:
- The maximum allowable capacity is marked when using a standard 4-pole motor. (200V Class is based on 220V and 400V Class on 440V.)
- The rated capacity (=√3*V*I) is 220V for 200V Class and 440V for 400V Class.
- Output Rated Voltage (V): 380~480V. The maximum output voltage does not exceed the source voltage.
- Input Rated Voltage (V): 3Ø 380~480V (-10%~+10%). When the input voltage is 507~528V 10% derating of the rated current should be performed.
- When the input voltage is 680VDC or above 10% derating of the rated current should be performed.
| Brand | LS Electric |
|---|
