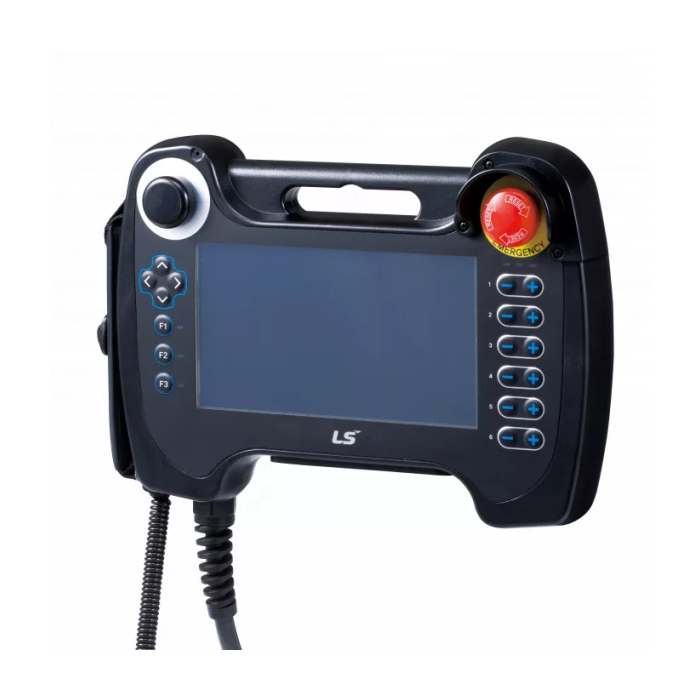

Handheld HMI 7" TFT LCD 24VDC 24-bit colour Pushbuttons 1 Ch. Ethernet USB RS-485 10M cable
Features:
- Outstanding visibility with a big screen and good definition.
- XP-Builder makes creating projects simple.
- Easy project file uploading and downloading across Ethernet and USB ports (multilingual support).
- Put the Enable Switch in place.
Specifications:
- Display Type: TFT color LCD.
- Screen Size: 7.0"
- Screen resolution: 1024 x 600 pixels.
- Colour Indication: 24-Bit colour (16.7M)
- Blacklight: LED method, Automatic On/Off support
- Blacklight lifetime: 50,000 hours
- Touch panel: Resistive overlay (Pressure type)
- Audio: Magnetic buzzer (12Ø 85 dB)
- Processor: ARM Cortex-A9 800 MHz, single core
- Memory: Flash: 8GB (small memory: 128MB), Operating RAM: 1GB, Backup RAM: 1MB.
- Ethernet: 1 x 10Base-T/100Base-TX
- USB host: 1 x USB 2.0
- RS-232C: 1 x RS-232C (Terminal block)
- Multi-language
- GIF format supported.
- Certification: CE, KC
- Protection: IP42 (Front)
- Dimensions(mm): 195×270×72 (Excluding cables)
- Power: DC 24 V ±5%
- Power consumption(W): 12
- Communication Port: RS422/485
- Communication Port: Ethernet
- Communication Port: USB (Host)
- Cable Length: 10m
| Brand | LS Electric |
|---|
