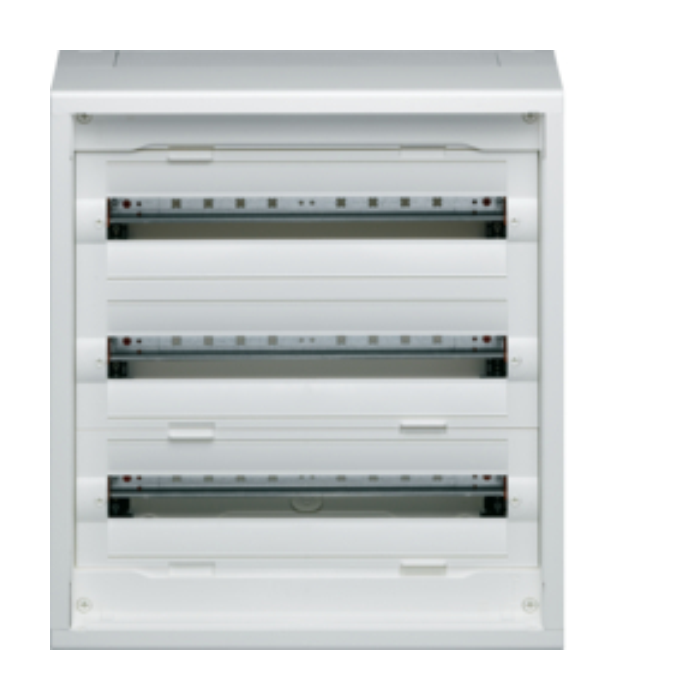

72W VEGA-D SURFACE D/BOARD
Description:
- High-capacity distribution board for surface mounting, Hager 72W VEGA-D SURFACE D/BOARD (FD32DN) is perfect for both home and business electrical systems.
- This enclosure, which is a member of the New VegaD series, is designed to offer an orderly and dependable method of controlling electrical circuits.
- Long-lasting performance and safety are guaranteed by the FD32DN's sturdy construction and user-friendly design.
- It is appropriate for intricate electrical configurations because it can hold up to 72 modules.
Specifications:
- Product Code: FD32DN.
- EAN: 3250612548279.
- Compatibility: Hager VegaD enclosures.
- Material: Plastic/metal with powder-coated surface treatment.
- Colour: Pure white (RAL 9010).
- Installation: Surface mounting.
- Dimensions:
- Depth: 193 mm.
- Height: 600 mm.
- Width: 550 mm.
- Width in Division Units: 24.
- Number of Modules: 72.
- Number of Rows: 3.
- Quantity of Rails: 3.
- Main Electrical Features:
- Nominal Voltage: 230/400 V.
- Rated Current: 160 A.
- Cover and Door:
- Cover Type: With notch.
- Door Locking: Without.
- Transparent Cover or Door: No.
- Connection:
- Number of Conduit Inlets: 4.
- Number of Openings for Flange Plates: 2.
- Compliance:
- REACH Conform: No.
- RoHS Conform: Yes.
- Halogen Free: No.
- Protection Index:
- IP30/IK07 (without door).
- IP41/IK08 (with door).
- Packaging: 1 piece per package.
