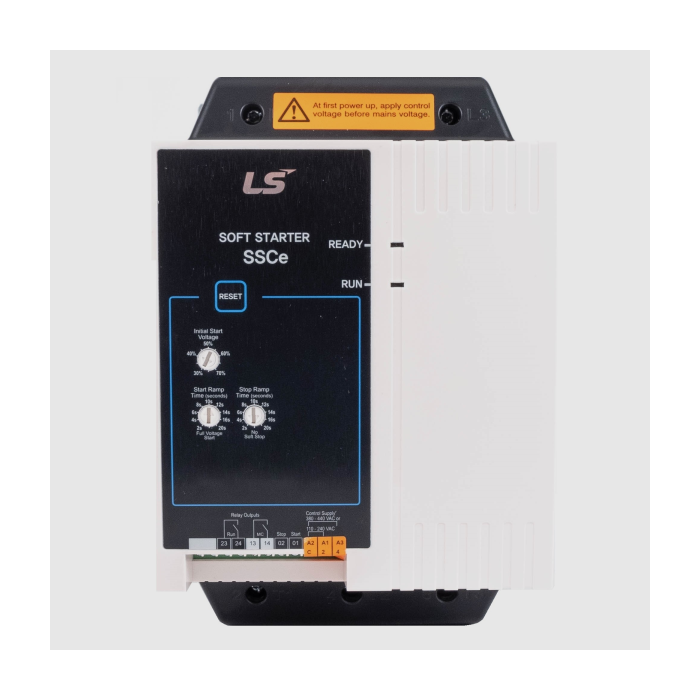

75 kW 140A FLC Basic Economic Built-in Bypass 200 - 440VAC Supply 110-440V

ZAR 0.00 ZAR 0.00
Out of stock
SKU
SSCe-140-V4-C1-140A

Pricing available on request

Description:

  • A soft starter may provide steady motor performance and is a cost-effective and efficient solution.
  • With LS's broad knowledge and expertise, we offer a solution to improve operational effectiveness while reducing energy costs.

Specifications:

  • Power: Normal duty: 75 kW 140A 400 VAC, Heavy Duty: 55 kW 120A 400 VAC.
  • Main voltage: 110~240 VAC (+10/-15%) or 380~440 VAC (+10/-15%).
  • Rated Output Current: 140 A.
  • Control Voltage: 110~240 VAC (+10%/-15%).
  • Start current: 4 x Inom.
  • Start time: 1-20s (Adjustable).
  • Operating temperature: -10°C to +60°C.
  • Built-in bypass.
  • Without Motor Protection.
  • AC53b 4-6:594.
  • <1000m 40°C.
  • Size: 200 x 240 x 214 mm (W x H x D).
  • Weight: 6.1 kg.
  • IP00.

Features:

  • Ultra compact design (Built-in bypass).
  • IEC/UL/KC Standards.
  • Easy operation & control.
  • Allows for fast diagnosis of a trip via two LEDs.
  • Suitable for mounting in a switchboard.
More Information
SKU SSCe-140-V4-C1-140A
Brand LS Electric
