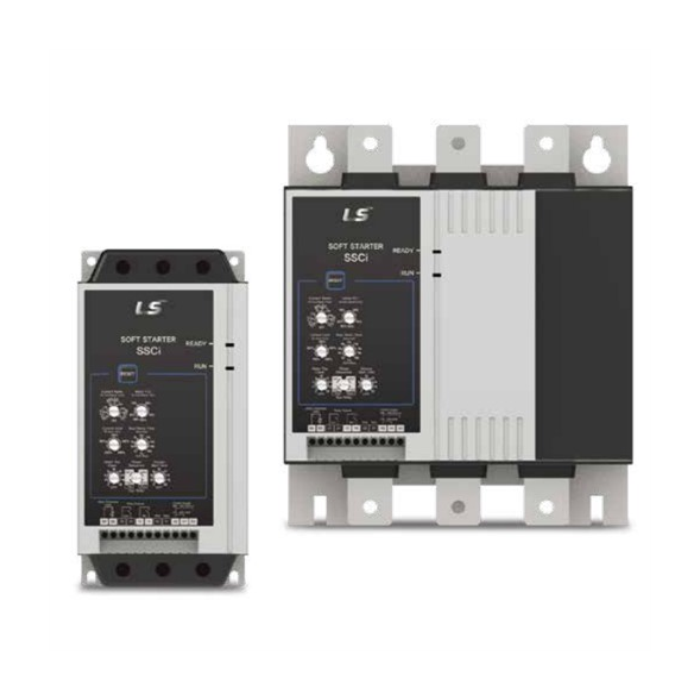

75 kW 140A FLC Basic Type Motor Protection Bypass 200-440VAC Supply 110-440V

ZAR 33,003.00
Out of stock
SKU
SSCi-140-V4-C1 140A

Description:

  • A soft starter may provide steady motor performance and is a cost-effective and efficient solution.
  • With LS's broad knowledge and expertise, we offer a solution to improve operational effectiveness while reducing energy costs.

Features:

  • Ultra compact design (Built-in bypass)
  • IEC/UL/KC Standards
  • Built-in motor protection
  • Allows for fast diagnosis of a trip via two LEDs.
  • Simple panel configuration & cost-saving
  • Easy operation & control

Specifications:

  • Power: Normal duty: 75 kW 140A 400 VAC, Heavy Duty: 55 kW 120A 400 VAC.
  • Main voltage: 110~240 VAC (+10/-15%) or 380~440 VAC (+10/-15%)
  • Rated Output Current: 140 A
  • Control Voltage: 110~240 VAC (+10%/-15%)
  • Start current: 4 x Inom.
  • Start time: 1-20s (Adjustable)
  • Operating temperature: -10°C to +60°C
  • Built-in bypass
  • With Motor Protection
  • AC53b 4-6:594
  • <1000m 40℃
  • Size: 200 x 240 x 214 mm (W x H x D)
  • Weight: 6.1 kg
  • IP00
More Information
Brand LS Electric
