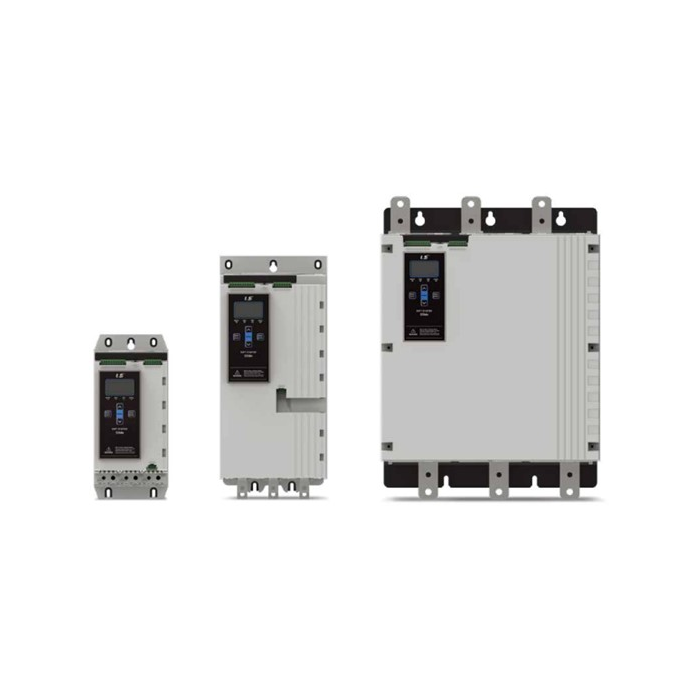

75 kW 144A FLC Standard Economic-Type 200 - 525 Vac Supply 24V Control Bypass

ZAR 47,137.00
Out of stock
SKU
SSMe-0184B-V5-C2

Description:

  • A soft starter is a practical and affordable way to ensure the motor runs steadily.
  • With LS's extensive experience and knowledge, we offer a solution to raise operating efficiency and reduce energy costs.

Features:

  • Easy Operation and Control
  • Motor Protection
  • Built-in bypass
  • Compact Design, Easy to integrate.
  • Timed Voltage Ramp System
  • Convenient Status and Trip Check with LED Indicator

Specifications:

  • 75kW Soft Starter
  • Binary inputs: 4
  • Relay outputs: 3.
  • Analog outputs: 1
  • Analog output current (mA): 4 to 20
  • Depth (mm): 243
  • Width (mm): 216
  • Height (mm): 450
  • Supply voltage (VAC): 180 to 577.5
  • 3-phase
  • Supply voltage frequency (Hz): 45 to 66
  • Output current (A): 184
  • Operating temperature (°C): -10 to 60
  • IP protection level: 20
  • Economic
  • Digital Control
  • 184A FLC
  • Built-in Bypass Contactor
  • Input Voltage 200 ~ 525V AC
  • Control Voltage 24V AC/DC
  • Analog Settings
  • Without Motor Protection

SSM Series:

  • Zero Harmonics on Smart Cards
  • System Protection: Power Through minimizes on-site downtime while allowing for continued operation in emergency scenarios.
  • Both still have the greatest capacity for protection and control.
  • Design with the System's Total Efficiency in Mind: Choosing the right motor control mode is just as crucial as using energy-efficient components.
  • It is more effective to use a soft starter rather than a VFD when operating at a fixed speed.
  • Effective Function: SSM Soft Starters operate at 99.5% efficiency when powered by an internal bypass.
  • Graphical Display
  • Simple commissioning through fast application setup
  • Support for eight languages, including English, Portuguese, Chinese, French, Spanish, Italian, German, and Russian, is multilingual.
  • Six network connections make for a strong network connection. Modbus TCP/PROFINET/Ethernet IP/Profibus/Device Net/Modbus RTU
  • Automated Schedulers and Timers: Quick and easy automation that does not require timers or additional logic.
  • Simulation Mode: No need to connect the main power supply and motor; easy and fast testing during installation and commissioning.
More Information
Brand LS Electric
