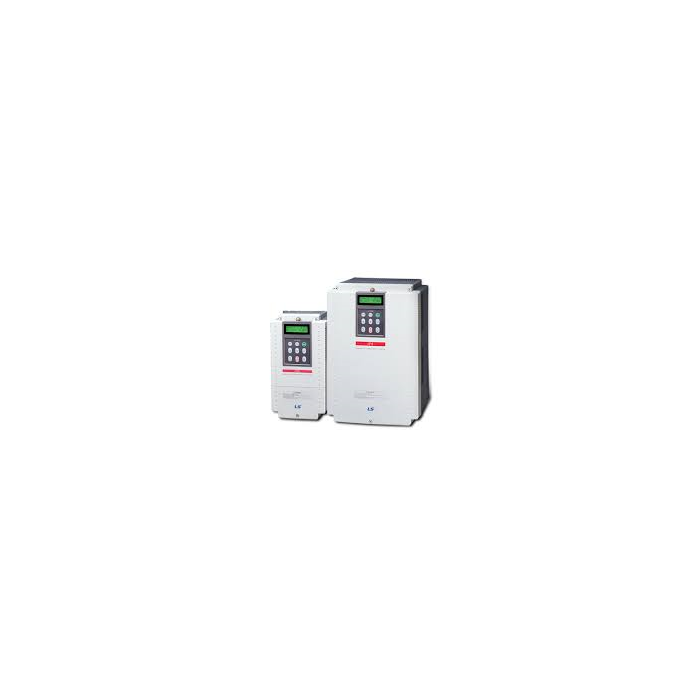

75kW 3-Phase 525 - 600VAC HVAC Drive Pump and Fan Applications

ZAR 103,571.00
Out of stock
SKU
SV0750iP5A-6O

iP5A Series:

  • The iP5A offers dependable and reasonably priced system performance and was created especially for HVAC applications.
  • PID Control.
  • It has a dual PID.
  • Control of Multiple Motors (0.75~450kW).
  • Sleep and wake-up functions.
  • Function of Pre-Heating.
  • Flying Start Function.
  • Automated Conservation of Energy.
  • The iP5A maximizes motor performance despite external voltage variations and lightning surges.
  • Improved system management during power dips and outages.
  • Safety Stop.
  • Current Algorithm for Reducing Leakage.
  • Flux Braking Algorithm.
  • Changes the carrier frequency automatically.
  • All components are easily accessible, and maintenance is made simple by the design of the iP5A.

Specifications:

  • INVERTER DRIVE
  • SENSORLESS VECTOR & V/HZ CONTROL
  • MULTI-MOTOR CONTROL
  • FLYING START
  • PRE-HEATING FUNCTION
  • AUTOMATIC ENERGY SAVINGS (FLUX OPTIMIZATION)
  • THREE PHASE 525 ~ 600 VAC (-15% ~ +10%)
  • 100HP 104AMP
  • KEYPAD BUILT-IN
More Information
Brand LS Electric
