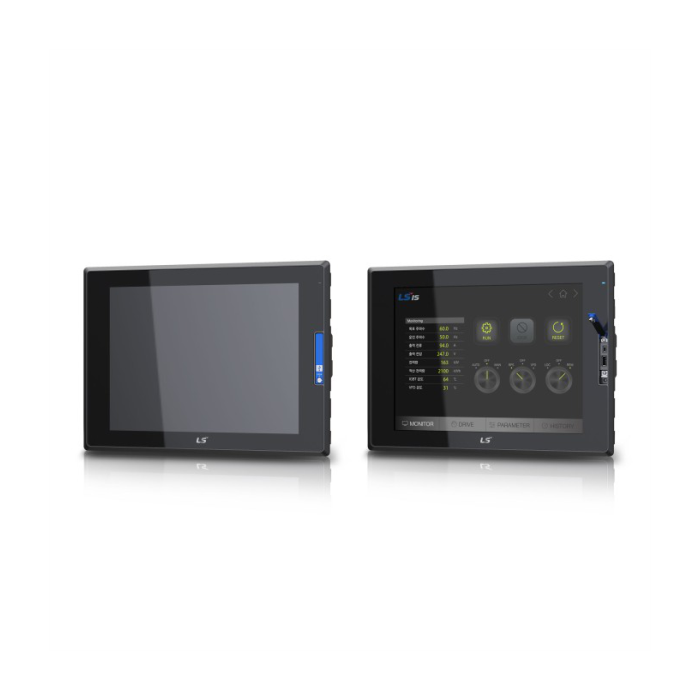

8.4" TFT 16-M colours SVGA AC100-240V power based on Win
Description:
- Aluminum body frame, touch screen with good response.
- Simple to use split screen, multi-touch, gesture, and portrait mode.
- Multiple 1 Gbit/second Ethernet connections are made between the PC and PLC.
- Multiple interfaces: SD card, HDMI, USB host/device.
- High resolution: IP66, UL type 4x, NEMA 4x requirements; 1024 x 768
- Proof against explosions. KCs, ATEX, and IECEx
Specifications:
- Display type: TFT colour LCD.
- Screen size: 8.4.”
- Display resolution: 800 x 600.
- Colour indication: 24-bit colour (16.7M colours)
- Blacklight: LED method, automatic on/Off support.
- Blacklight lifetime: 40, 000 hour
- Touch panel: Capacitive touch.
- Audio output: Magnetic buzzer (85Db)
- Processor: 1GHz, Dual core
- Memory: flash: 1GB, operating RAM: 1GB, Backup RAM: 1Mbyte.
- Video output: 1Xhdmi
- Multi-language.
- Animation: gif format
- Protection standard: IP66, conform to the UL type 4x, NEMA 4x standard.
- Dimensions: 240 x 180 x 60
- Panel cut (mm): 228.5 x 158.5.
- Power consumption (W): 25
Features:
- Ambient temperature: 0°C~+50°C
- Storage temperature: -20°C ~+60°C
- Ambient humidity: 10~85% RH, without dew condensation
- Storage humidity: 10~85% RH, without dew condensation
- Operating ambience: free from corrosive gas and excessive dust
- Altitude: 2, 000m (6562 ft) or below
- Pollution degree: 2 or under
- Cooling method: natural air-cooling
| Brand | LS Electric |
|---|
