XGB 8-axis positioning module, EtherCAT Master, 1 high-speed input point(s)
Description:

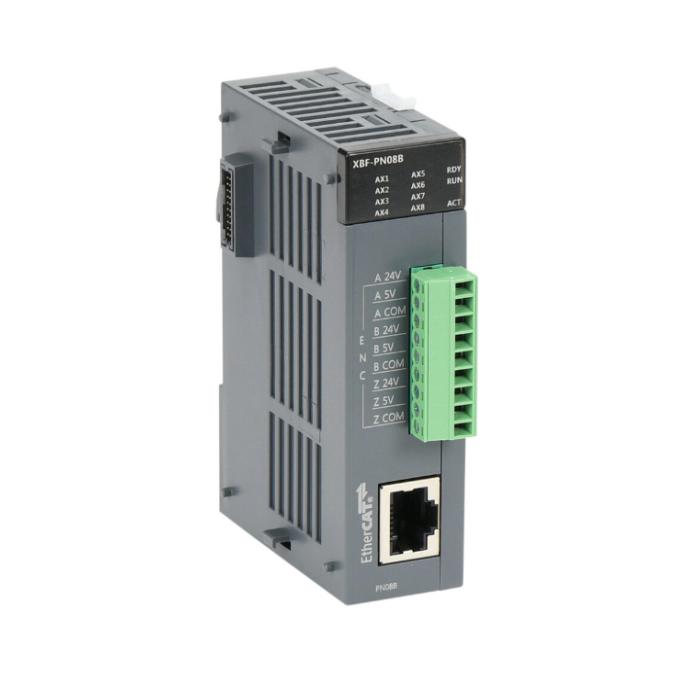

- Part number XBF-PN08B, the LS Electric XGB 8-axis positioning module, is an advanced, high-performing module made for accurate motion control in industrial automation systems.
- In its capacity as an EtherCAT Master, this module offers smooth integration, multi-axis control, and fast communication.
- It has a single high-speed input point that can accept both differential and single-ended encoder inputs and supports sinking and line driver (differential) setups.
- For dependable network communication, it also has a 100Base-TX Ethernet connector (RJ45).
- Because of its ability to provide precise and effective positioning control, the XBF-PN08B is a great option for intricate automation jobs that call for coordinated and exact motions.
Specifications:
- No. of control axis: 8
- Interpolation function: 2-8 axes linear interpolation, 2 axes circular interpolation, 3 axes helical interpolation.
- Current Consumption: 510mA
- Accessories: Communication Cable: CAT.5 STP Shielded twisted pair cable
- Input Type: Line Driver
- Communication Protocol: Ether CAT
- Positioning: 8 Axis (20Mpps Ether CAT)
- Product Category: Compact PLC (XGB)
- Product Type: Positioning
- Category: HIGH SPEED COUNTERS/POSITIONING MODULES for XEC / XEM PLCs
| Brand | LS Electric |
|---|
