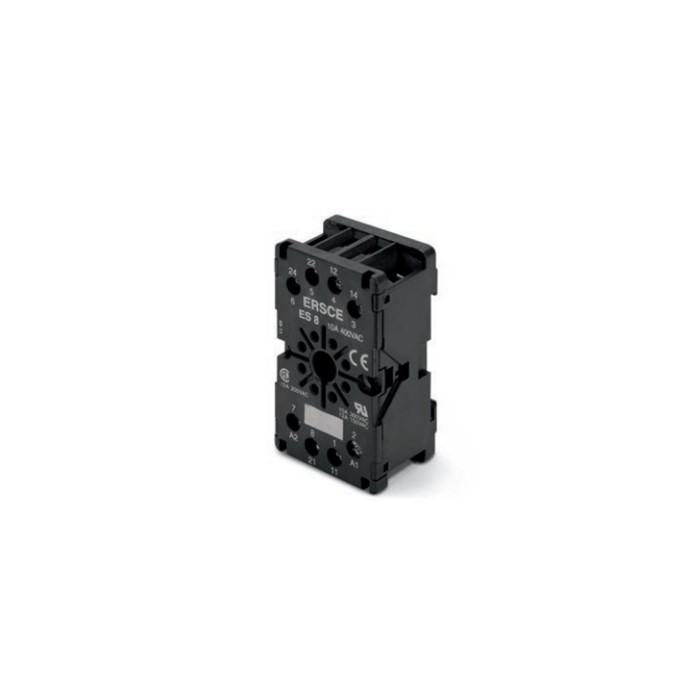

8 PIN SURFACE/DIN MOUNT SOCKET BLACK
Accessory for modular timing devices in the L48 series:
- Description: DIN rail-mounting relay socket, 8-pin surface.
- Screw terminal connection.
Technical information:
- The ES 8 relay socket is designed for octal REL-OR with 2 PDT screw connections and can be mounted on the NS 35/7,5.
- Rated voltage/current: 10 A/300 VAC (UL) or 12 A/300 VAC (CSA).
- Separate contact circuits with a dielectric strength of 2500V.
- Coil-contact circuits with a 2500V dielectric strength.
Connection information:
- Solid and stranded conductors have a minimum cross section of 0.5 mm².
- Solid and stranded conductors have a maximum cross section of 2.5 mm².
- Conductor cross-section AWG minimum: 26.
- Conductor cross section AWG maximum 20.
- Stripping length: 7 mm.
- M3 screw thread.
General information:
- 38 mm in width.
- 65 mm in height.
- Black in colour.
- Operating temperature range: -25 °C to 85 °C.
| Brand | Ersce |
|---|
