800x600x300 POLY. ENC T/PARENT
Description:

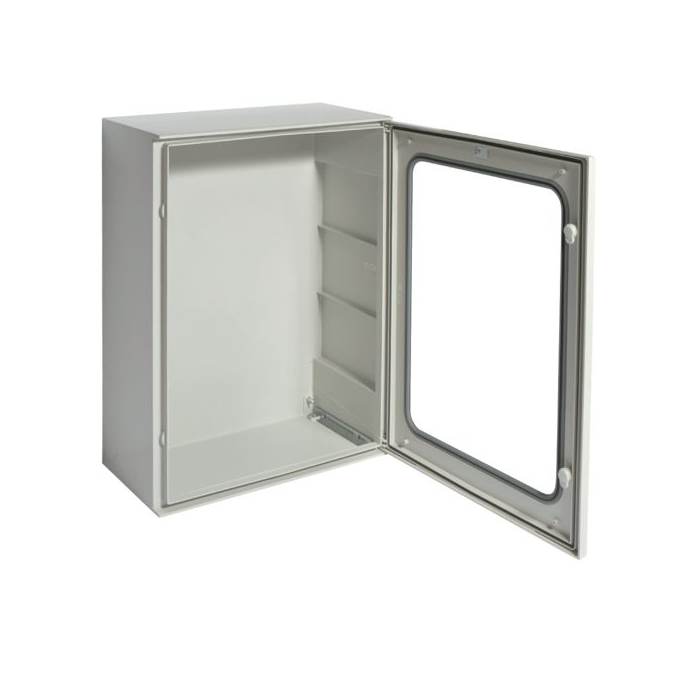

- As a member of the Orion.Plus series, the Hager Polyester Enclosure FL229BT is made to offer strong protection for electro-mechanical and electrical applications.
- With its excellent resistance to impact and environmental elements, this enclosure can be used both indoors and outdoors.
- Without having to open the enclosure, inspection is made simple by the transparent door.
Specifications:
- Material:
- Glass-reinforced polyester.
- Colour: Light grey (RAL 7035).
- Surface Treatment: Untreated.
- Construction:
- Fully welded construction for enhanced strength and durability.
- Transparent door with a lock using a male triangular wrench.
- Interlockable door with two key locks.
- Suitable for wall mounting.
- Protection:
- Ingress Protection: IP66, ensuring excellent protection against dust and water.
- Impact Resistance: IK10.
- Insulation Class: II.
- Dimensions:
- Height: 800 mm.
- Width: 600 mm.
- Depth: 300 mm.
- Internal Depth: 300 mm.
- Thickness of Sidewall Material: 2 mm.
- Technical Data:
- Rated Current: 630 A.
- Number of Modules: 140.
- Number of Rows: 4.
- Number of Rails: 5.
- Number of Openings for Flange Plates: 0.
- Standards: IEC 62208.
- Temperature Range: Suitable for a wide range of temperatures, ensuring reliability in various environments.
- Applications: Suitable for outdoor use and environments such as the food industry or medical environments where aggressive detergents are used for cleaning.
| Brand | :hager |
|---|
