Specifications:

• Operation Voltage: 10~30VDC/24VDC
• Inputs: 8*DI(Isolation) status low:<2VDC status high:>4VDC
• Outputs: 4*Isolation(Relay)
• Continuous Current: Relay: 5A(with resistive load), 2A(with inductive load)
• Output Operating Frequency: Relay: 30HZ
• Input Operating Frequency: 250KHZ (Total 1000KHZ)
• RTC/ Hold During Power Off: Yes
• Operation Temperature: -20 to +75 °C
• Communication Ports: USB*1 & RS-485*2 & RS-232*1
• Communication Baud Rate: 2400~921600bps
• Degree Of Protection: IP20
• Base Controller IOs: 12 IOs
• Installation: 35 mm DIN rail or Flush mounting
• Dimension (W x H x D mm): 76.4*118.2*40.7 mm
• Communication Cable: CAB-MINIUSB60 or RS-485 or RS-232

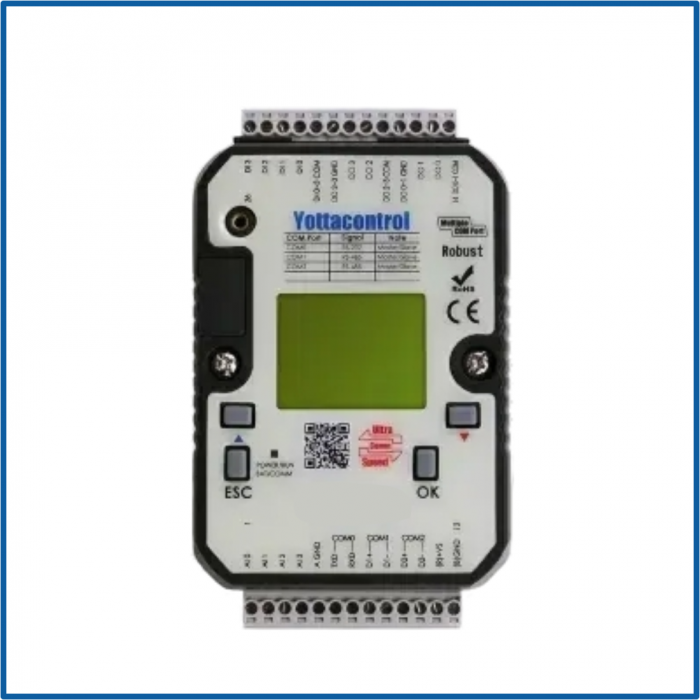

• *D = LCM Type / *M = Micro-SD Type
