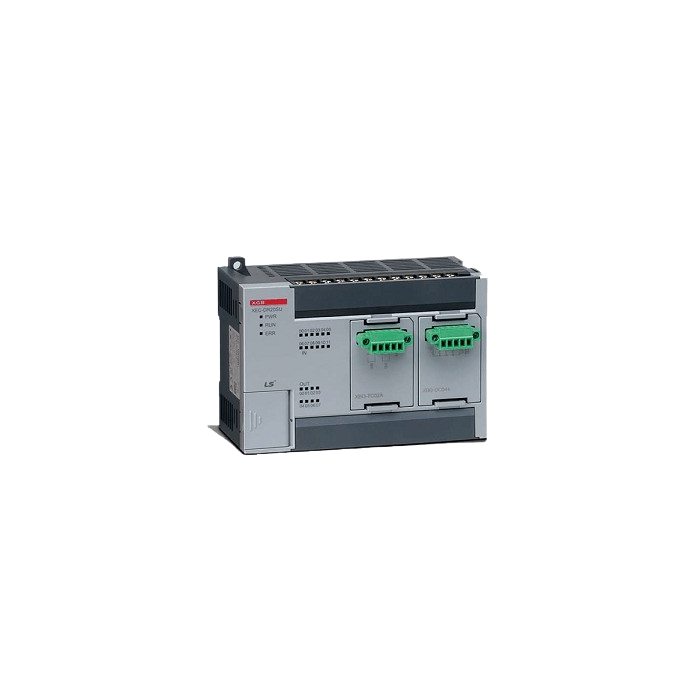

8x 24V DC In 6x NPN Out RS-232 loader 1x Ch RS-232C or RS-485 HSC 1x Opt
Pricing available on request
Description:
- The micro-PLC that provides maximal automation at the lowest possible cost is the XGB series.
- With its excellent functionality and performance, it can handle tasks ranging from easy control to difficult ones.
- XGB has a user-friendly interface along with multiple network monitoring and diagnosis features as well as a backup function.
Integrated programming environment:
- Enhanced user interface with XG5000/XG-PD
- Various monitoring functions.
- Network diagnosis and monitoring.
Optimum communication environment:
- Powerful communications: Built-in RS-232C / 485, 2 Expansions for communication
- Network configuration via Ethernet and Cnet I/F
Specifications:
- 8 Digital Inputs 24VDC.
- 6 Transistor Outputs (Sink Type).
- Power supply is AC 110V-230V.
- Supply Voltage: 100- 240 V AC.
- Relay Output Rating: 2A Resistive.
- Max. I/O Points: 384.
- Size: 100 x 64 x 90 mm.
- 1 Expansion slot available (for more digital in/outputs analogue in/outputs etc).
- Programming by PC over RS232 connection.
- Programmable by free downloadable XG5000 programming software.
- Flexible Connectivity using 2 Option Modules.
- Two communication ports are available: (1) Serial Programming port and (1) Serial peripheral port (RS232 or RS485) that supports Modbus RTU LS dedicated protocol and user defined protocols.
- Powerful Performance Fast Processing Speed (0.24µs/step).
- Built-in Functions: RS-232C/485 (1-ch) High-Speed Counter Pulse Catch Input Filter External Interrupt.
- Approvals: CE / UL / cUL .
- XBC Non-IEC (Master-K Type) PLCs, E / SU / H & XBM Versions.
- XBC-E Economic PLC (Master-K), 100-240V AC, 240 n/s Step, XBO Expansion Options Only.
Key benefits:
- Compact.
- Cost-effective.
- LADDER and IEC-1131 programmable.
- From 38 to 284 I/O points.
- From 94 ns/step to 240 ns/step.
- From 4 to 200 K steps.
| SKU | XBC-DN14E |
|---|---|
| Brand | LS Electric |
