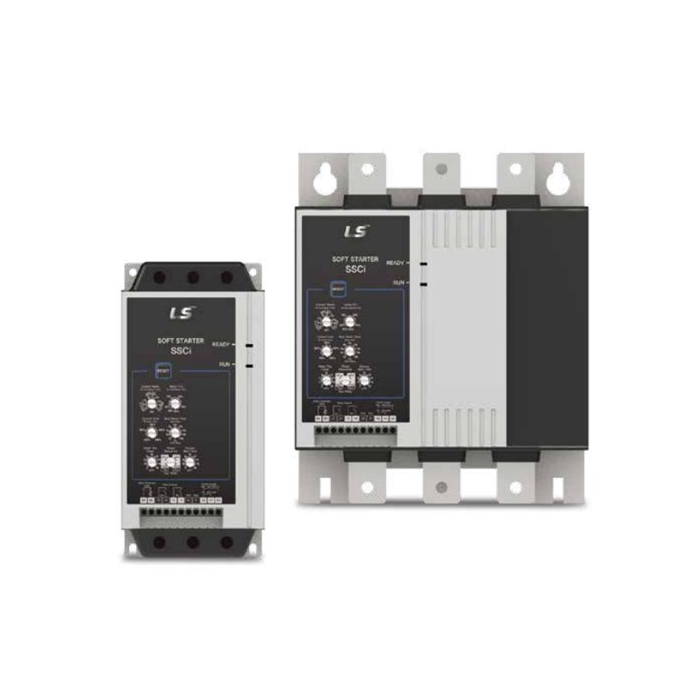

90 kW 170A FLC Basic Type, Motor Protection, Bypass, 200 - 575VAC Supply, 200 - 440V
Description:
- A soft starter is a practical and affordable way to ensure the motor runs steadily.
- With LS's vast experience and knowledge, we offer a solution to raise operating efficiency and reduce energy costs.
Features:
- Ultra compact design (Built-in bypass)
- IEC/UL/KC Standards
- Built-in motor protection
- Allows for fast diagnosis of a trip via two LEDs.
- Simple panel configuration & cost-saving
- Easy operation & control
Specifications:
- Power: Normal duty: 90 kW 170A 400 VAC, Heavy Duty: 75 kW 142A 400 VAC.
- Main Voltage: 200 ~ 575 VAC (+10/-15%)
- Rated Output Current: 170 A
- Control supply: 110~240 VAC (+10%/-15%)
- Start current: 4 x Inom.
- Start time: 1-20s (Adjustable)
- Operating temperature: -10°C to +60°C
- Size: 200 x 240 x 214 mm (W x H x D)
- Protection class: IP00
- 90kW Soft Starter
- Standard
- Analog Ctrl
- 170A FLC
- Built-in Bypass Contactor
- Analog Settings
- With Motor Protection
| Brand | LS Electric |
|---|
