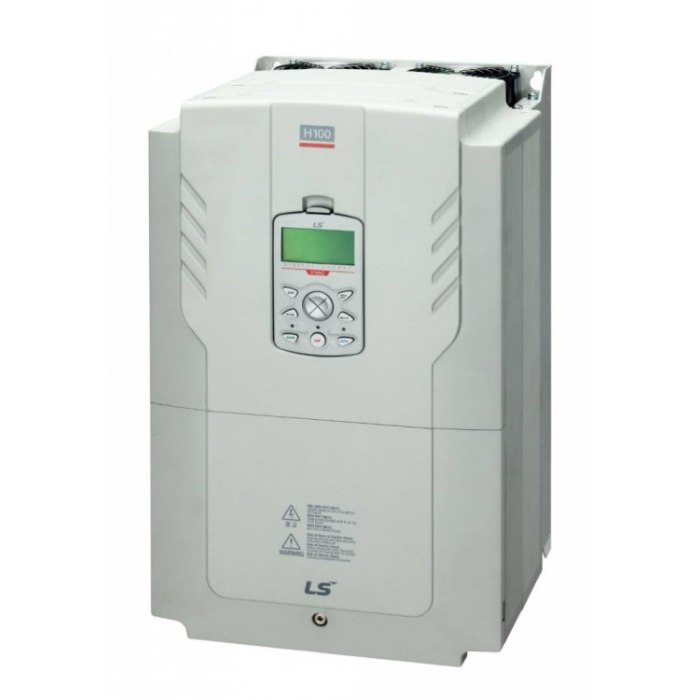

H100 Fan And Pump Drive 90kW 3-Ph 380VAC DC Reactor C3 EMC HVAC Funct. RTC RS-485 (BACnet)
Description:
- The LS Electrical H100 Fan and Pump Drive series is designed for high-performance and energy-efficient operation in HVAC and water treatment systems.
- These drives support three-phase input voltages of 200-240V and 380-480V, with power ratings ranging from 0.75kW to 500kW.
- The H100 series features a user-friendly keypad, built-in EMC filter, and multiple communication options including Modbus-RTU and BACnet MS/TP.
- It also offers advanced functions such as fire mode, multi-motor control, and energy-saving capabilities.
- The compact design allows for side-by-side installation, making it ideal for space-constrained environments.
- With its robust performance and reliability, the H100 series is a versatile solution for various fan and pump applications.
Specifications:
- 169A Overload Rated Current 120% 1 min.
- PID controller MASTER - SLAVE - MULTIPUMP SYSTEM
- 380-480 Volts
- 3 Phase Input 3 Phase Output
- LCD Keypad
- IP20
- Built-in EMC Filter C3
- Brake Chopper
- Power: 90 kW
- Voltage Input: 3 phase 380 - 480V at (-15% to +10%) 50 - 60 Hz (±5%)
- Voltage Output: 3 phase 380 - 480V
- Rated Output Current: 169 A
- Overload capacity: 120% / 1 minute.
- Output Frequency: 0 – 400 Hz
- Operating temperature: -10 °C to +50 °
- Protection class: IP20
| Brand | LS Electric |
|---|
