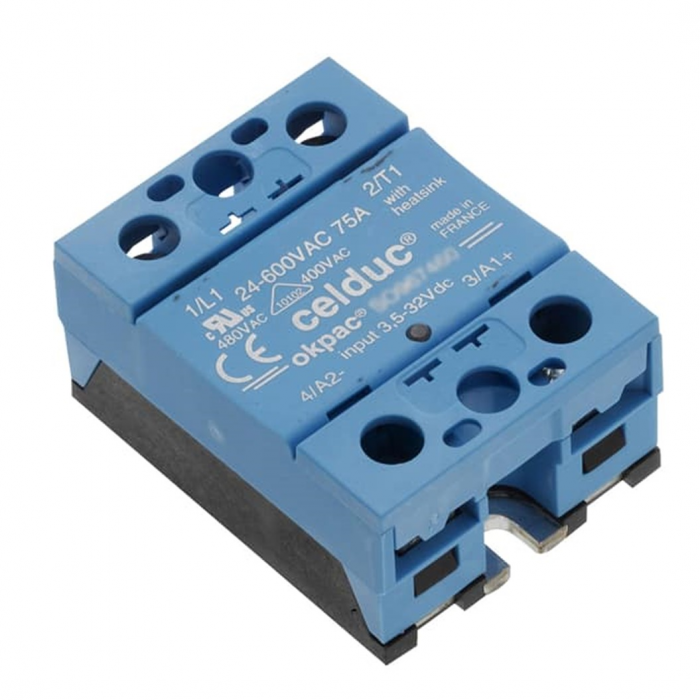

95A 24-510VAC 1200V SS RELAY
Solid state relays (SSR):
- Every Celduc SSR (solid state relay) has a very long lifespan and is equipped with back-to-back thyristors and 4th generation TMS2 technology.
General features:
- Manage the LED status.
- Controlled input current.
- EMC suitable for use in an industrial setting.
- SO8 range for infrared and light loads, respectively.
- Protection against voltage on the input (transil) and output (VDR).
- Zero-cross switching at a low threshold for zero-crossing (<12V).
- Extremely high immunity as defined by IEC/EN 61000-4-5 (spikes) and 61000-4-4 (bursts).
Specifications:
- SERIES: SO8
- SWITCHING CURRENT: 95A
- SWITCHING VOLTAGE: 24 - 510 VAC
- PEAK VOLTAGE: 1200V
- CONTROL VOLTAGE: 3.5 - 32 VDC
- DESCRIPTION: Zero-cross for most loads
- INDEX PROTECTION IP: IP20
- DIMENSIONS (MM): (H) 59.4 x (W) 45 x (D) 30
| Brand | Celduc relais |
|---|
