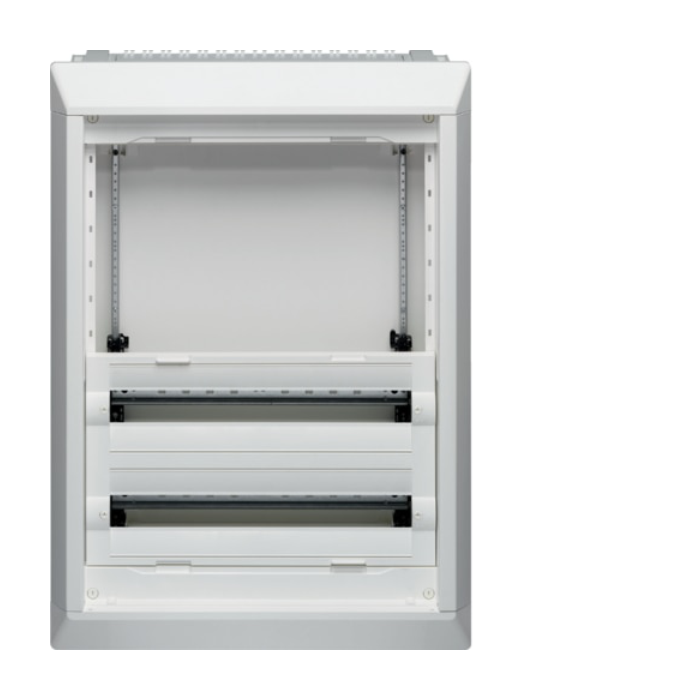

96 WAY FLUSH MOUNTING DISTRIBUTION BOARD 2x EMPTY ROWS
Distribution boards for surface and flush mounting from the Vega D series (IP41 with doors installed):
- Installing Vega D enclosures for supply up to 250A is appropriate for both residential and commercial structures.
- Supplied in an assembly-ready state.
- There are 24 module rows in each enclosure.
Features:
- Enclosure for metallic surface mounting.
- Quick-connect earth connections that are integrated.
- Front frame that can be removed for best access to installed internal devices.
- Doors made of sheet metal (without a window or with one) must be purchased individually.
Boards for flush installation:
- Moveable upright-equipped chassis that supports modular devices.
- Metallic finishing frame that is easily removed Depth = DN / AN = 72 mm.
- Metallic flush mounting tray with shielded cable entrances at the top and bottom, 110 mm in depth.
- Provided without the upper two rows.
- Internal modules of choice must be installed to accept the main switch MCCB.
Specifications:
- Vega D series; number of modular ways: 96 (4 x 24).
- DESCRIPTION: Index Protection Surface Mounting Distribution Board IP: class II fully insulated, IP30/IK07 (doorless) - IP41/IK08 (doored).
- COLOUR: Pale Gray 9010 RAL
- DIMENSIONS (MM): (H) 837 x (W) 550 x (D) 182
| Brand | :hager |
|---|
