A10 M/FUNC METER RAIL MNT+RS485
Descriptions:

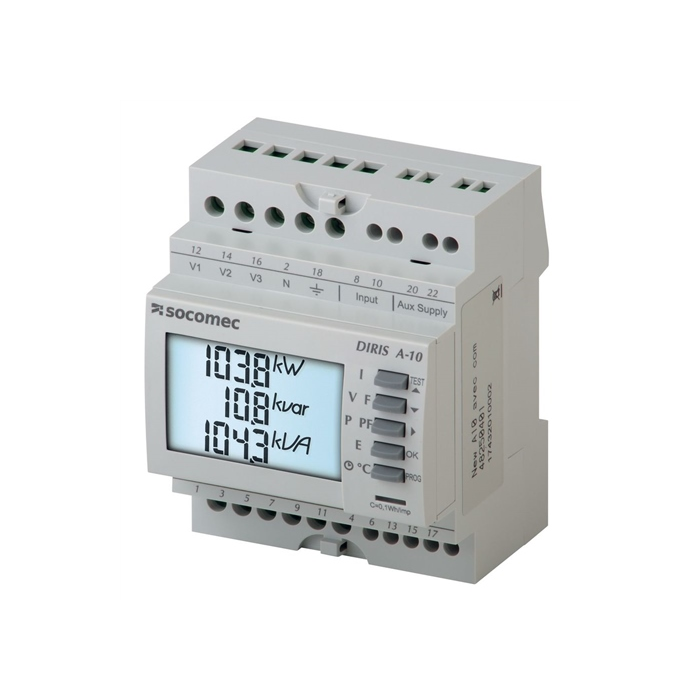

- Multifunction meter DIRIS A10.
- A modular multifunction meter designed for low voltage network measurements is the DIRIS A10.
- It makes it possible to view and use every electrical parameter for output and/or communication purposes.
- The ergonomic and small DIRIS multifunction meter is designed specifically for electrical energy management and monitoring.
- Its communication feature makes it possible to analyse data gathered by PLC energy management software.
Specifications:
- SERIES DIRIS A14.
- AUXILIARY POWER SUPPLY 110 - 277VAC.
- DESCRIPTION MID + RS485 MODBUS communication.
- MOUNTING DIN rail.
- CURRENT Instantaneous and maximum average I1, I2, I3, In.
- VOLTAGE AND FREQUENCY Instantaneous V1, V2, V3, U12, U23, U31, F.
- FREQUENCY 45~65 Hz.
- POWER Instantaneous and maximum average 3P, ΣP, 3Q, ΣQ, 3S, ΣS.
- ENERGY Active energy: +/- kWh Reactive energy: +/- kvarh - hours.
- HARMONIC ANALYSIS THD Current, voltage, phase-to-phase voltage.
- EVENTS Alarms on all electrical values.
- ENERGY ACCURACY Active energy class 0.55.
- NUMBER OF PLUG-IN MODULES 4.
- DIMENSIONS (MM) (H) 72 x (W) 90 x (D) 64.
| Brand | SOCOMEC |
|---|
