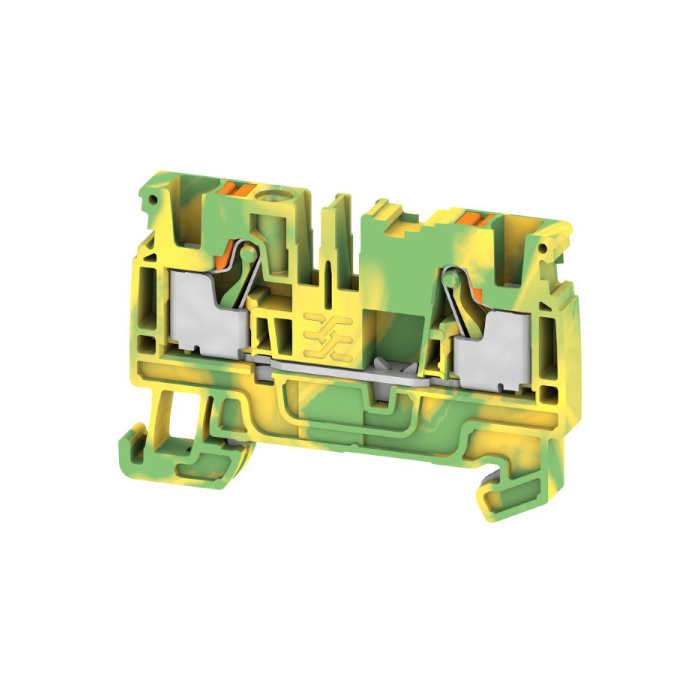

A2C 4 PE
A3C 6 PE:
- A protected feed through terminal block is an electrical conductor used in a variety of applications to ensure safety.
- PE terminal blocks are used to connect copper wires to the mounting support plate, both electrically and mechanically.
- They have one or more contact points for connecting and/or bifurcating protecting earth conductors.
Dimensions and weights:
- Depth: 39.5 mm.
- Depth (inches): 1.555 inch.
- Depth including DIN rail: 40.5 mm.
- Height: 60 mm.
- Height (inches): 2.362 inch.
- Width: 6.1 mm.
- Width (inches): 0.24 inch.
- Net weight: 12.357 g.
Temperatures:
- Storage temperature: -25 °C - 55 °C.
- Continuous operating temp., min.: -60 °C.
- Continuous operating temp., max.: 130 °C.
Environmental Product Compliance:
- REACH SVHC: /.
Material data:
- Material: Wemid.
- Colour: Green/yellow.
- Colour of operational elements: orange.
- UL 94 flammability rating: V-0.
Rating data IECEx/ATEX:
- Certificate No. (ATEX): TUEV16ATEX7939U.
- Certificate No. (IECEX): IECEXTUR16.0045U.
- Wire cross section max. (ATEX): 4 mm².
- Wire cross section max. (IECEX): 4 mm².
- Marking EN 60079-7: Ex ec II C Gc.
- Ex 2014/34/EU label: II 3 G D.
System specifications:
- End cover plate required: Yes.
- Number of potentials: 1.
- Number of levels: 1.
- Number of clamping points per level: 2.
- Number of potentials per tier: 1.
- PE connection: Yes.
- Rail: TS 35.
- N-function: No.
- PE function: Yes.
- PEN function: No.
Additional technical data:
- Installation advice: Rail.
- Open sides: right.
- Snap-on: No.
- Type of fixing: Snap-on.
- Type of mounting: TS 35.
- With snap-in pegs: No.
Conductors for clamping (additional connection):
- Connection type, additional connection: PUSH IN.
Conductors for clamping (rated connection):
- Blade size: 0.6 x 3.5 mm.
- Clamping range, max.: 6 mm².
- Clamping range, min.: 0.14 mm².
- Connection cross-section, stranded, max.: 6 mm².
- Connection cross-section, stranded, min.: 0.5 mm².
- Connection direction: top.
- Gauge to IEC 60947-1: A4.
- Number of connections: 2.
- Stripping length: 12 mm.
- Tube length for twin wire-end ferrule:
- Tube length:
- min.: 6 mm.
- max.:10 mm.
- Cross-section for conductor connection:
- min.: 0.5 mm².
- max.: 1 mm².
- Tube length:
- min.: 6 mm.
- max.: 10 mm.
- min.: 0.5 mm².
- max.: 1 mm².
- min.: 7 mm.
- max.: 12 mm.
- min.: 1.5 mm².
- max.: 2.5 mm².
- min.: 9 mm.
- max.: 15 mm.
- nominal.: 4 mm².
- min.: 4 mm².
- max.: 6 mm².
- Tube length:
- min.: 6 mm.
- max.: 10 mm.
- min.: 0.5 mm².
- max.: 1 mm².
- min.: 7 mm.
- max.: 12 mm.
- min.: 1.5 mm².
- max.: 2.5 mm².
- min.: 9 mm.
- max.: 15 mm.
- nominal: 4 mm².
- min.: 4 mm².
- max.: 6 mm².
CSA rating data:
- Certificate No. (CSA): 200039-70089609.
- Voltage size B (CSA): 600 V.
- Voltage size C (CSA): 600 V.
- Voltage size D (CSA): 600 V.
- Wire cross section max. (CSA): 10 AWG.
- Wire cross section min. (CSA): 26 AWG.
General:
- Installation advice: Rail.
- Rail: TS 35.
- Standards: IEC 60947-7-2.
- Wire connection cross section AWG, max.: AWG 12.
- Wire connection cross section AWG, min.: AWG 26.
Rating data:
- Rated short-time current: 480 A (4 mm²).
- PEN function: No.
Rating data:
- Rated cross-section: 4 mm².
- Rated voltage: 800 V.
- Rated DC voltage: 800 V.
- Standards: IEC 60947-7-2.
- Volume resistance according to IEC 60947-7-x: 1 mΩ.
- Rated impulse withstand voltage: 8 kV.
- Power loss in accordance with IEC 60947-7-x: 1.02 W.
- Pollution severity: 3.
- Surge voltage category: III.
UL rating data:
- Certificate No. (cURus): E60693.
- Conductor size Factory wiring max. (cURus): 10 AWG.
- Conductor size Factory wiring min. (cURus): 28 AWG.
- Conductor size Field wiring max. (cURus): 10 AWG.
- Conductor size Field wiring min. (cURus): 28 AWG.
- Voltage size B (cURus): 600 V.
- Voltage size C (cURus): 600 V.
- Voltage size D (cURus): 600 V.
