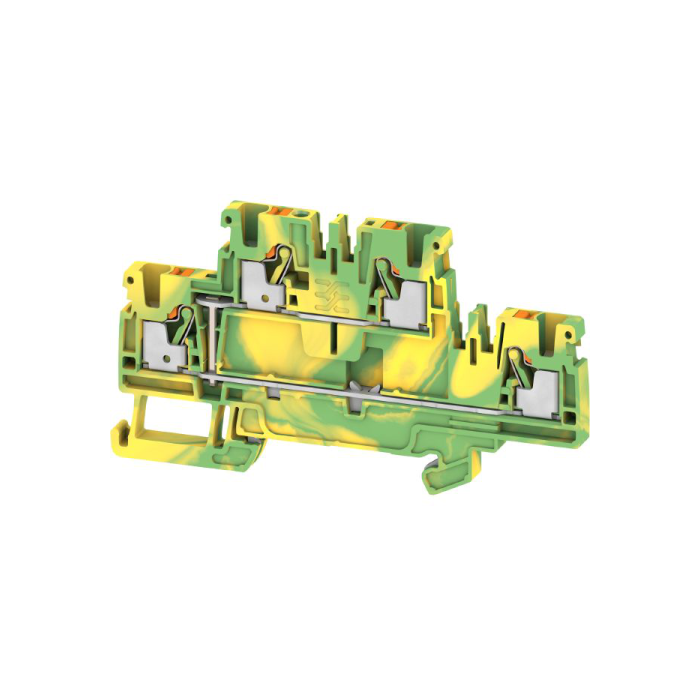

A2T 2.5 PE

ZAR 0.00 ZAR 0.00
Out of stock
SKU
1547680000

Pricing available on request

A2T 2.5 PE:

  • There are numerous uses for a protective feed through terminal block, which is an electrical conductor used for safety.
  • To determine the mechanical and electrical PE terminal blocks are used to connect copper wires to the mounting support plate.
  • They've got one or more places of contact where protective earth conductors can be connected to and/or split

Material data:

  • Material: Wemid
  • Colour: Green/yellow
  • UL 94 flammability rating: V-0

Dimensions and weights:

  • Depth: 50.5 mm
  • Depth including DIN rail: 51 mm
  • Height: 90 mm
  • Net weight: 16.879 g

Temperatures:

  • Storage temperature: -25 °C...55 °C
  • Continuous operating temp., min.: -60 °C
  • Continuous operating temp., max.: 130 °C

Rating data:

  • Rated cross-section: 2.5 mm²
  • Rated voltage: 800 V
  • Rated voltage to adjoining terminal: 800 V
  • Rated DC voltage: 800 V
  • Standards: IEC 60947-7-2
  • Volume resistance according to IEC 60947-7-x: 1.33 mΩ
  • Rated impulse withstand voltage: 8 kV
  • Rated impulse withstand voltage to adjacent terminal: 6 kV
  • Power loss in accordance with IEC 60947-7-x: 0.77 W
  • Pollution severity: 3
  • Surge voltage category: III
More Information
SKU 1547680000
Brand Weidmuller
