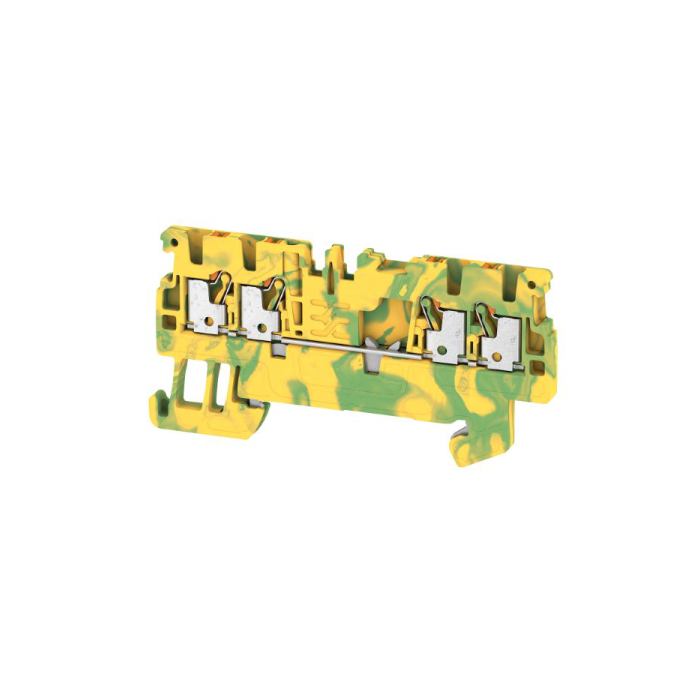

A4C 1.5 PE
Pricing available on request
A4C 1.5 PE:
- There are numerous uses for a protective feed through terminal block, which is an electrical conductor used for safety.
- To determine the mechanical and electrical PE terminal blocks are used to connect copper wires to the mounting support plate.
- They've got one or more places of contact where protective earth conductors can be divided or connected.
Material data:
- Material: Wemid
- Colour white
- Colour of operational elements: orange
- UL 94 flammability rating: V-0
Dimensions and weights:
- Depth: 33.5 mm
- Depth including DIN rail: 34.5 mm
- Height: 67.5 mm
- Net weight: 8.6 g
Temperatures:
- Storage temperature: -25 °C...55 °C
- Continuous operating temp., min.: -60 °C
- Continuous operating temp., max.: 130 °C
Rating data:
- Rated cross-section: 1.5 mm²
- Rated voltage to adjoining terminal: 500 V
- Rated DC voltage: 500 V
- Standards: IEC 60947-7-2
- Volume resistance according to IEC 60947-7-x: 1.83 mΩ
- Rated impulse withstand voltage: 6 kV
- Rated impulse withstand voltage to adjacent terminal: 6 kV
- Power loss in accordance with IEC 60947-7-x: 0.56 W
- Pollution severity: 3
- Surge voltage category: III
| SKU | 1552660000 |
|---|---|
| Brand | Weidmuller |
