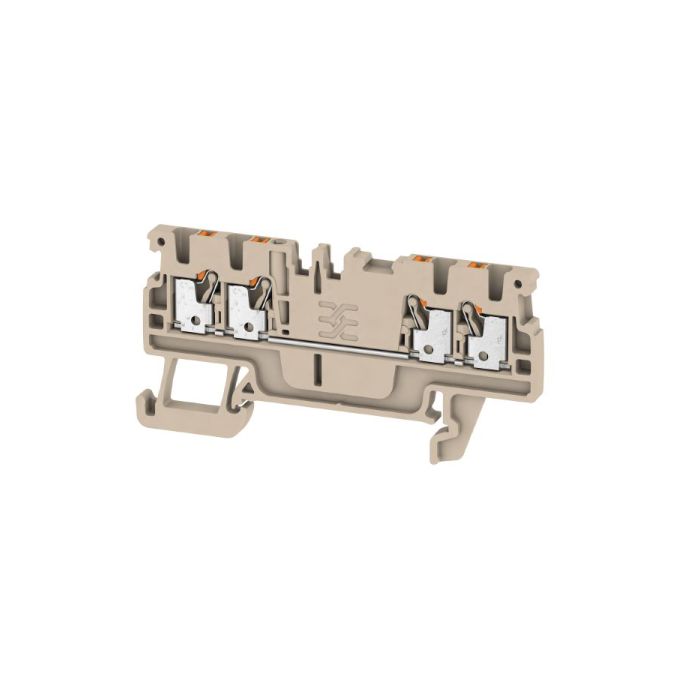

A4C 1.5A4C 1.5
Pricing available on request
A4C 1.5:
- To feed through power, signal, and data is the classical requirement in electrical engineering and panel building.
- The insulating material, the connection system and the design of the terminal blocks are the differentiating features.
- A feed-through terminal block is suitable for joining and/or connecting one or more conductors.
- They could have one or more connection levels that are on the same potential or insulated against one another.
Material data:
- Material: Wemid
- Colour: dark beige
- Colour of operational elements: orange
- UL 94 flammability rating: V-0
Dimensions and weights:
- Depth: 33.5 mm
- Depth including DIN rail: 34 mm
- Height: 67.5 mm
- Net weight: 5.57 g
Temperatures:
- Storage temperature: -25 °C...55 °C
- Continuous operating temp., min.: -60 °C
- Continuous operating temp., max.: 130 °C
Rating data:
- Rated cross-section: 1.5 mm²
- Rated voltage: 500 V
- Rated DC voltage: 500 V
- Rated current: 17.5 A
- Current at maximum wires: 17.5 A
- Standards: IEC 60947-7-1
- Volume resistance according to IEC 60947-7-x: 1.83 mΩ
- Rated impulse withstand voltage: 6 kV
- Power loss in accordance with IEC 60947-7-x: 0.56 W
- Pollution severity: 3
- Surge voltage category: III
| SKU | 1552690000 |
|---|---|
| Brand | Weidmuller |
