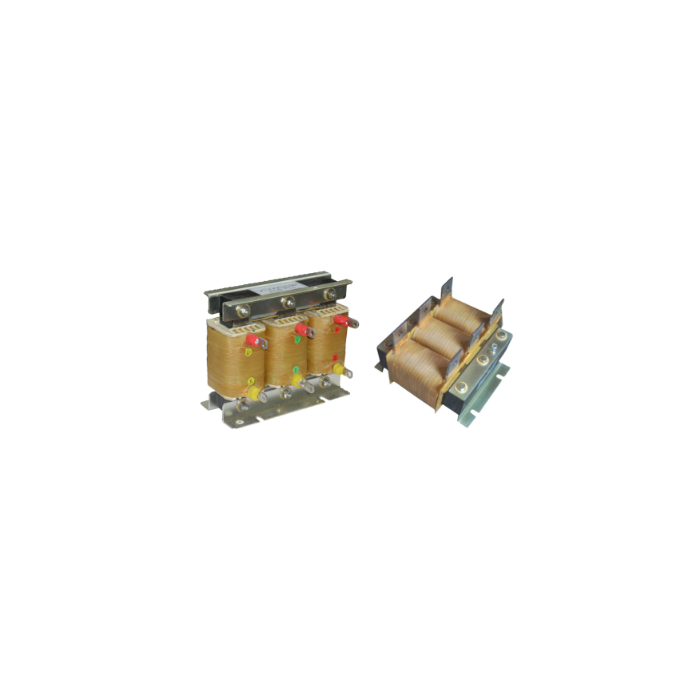

3-Phase 380V 1.5KW AC Input choke
EM-RAI3 Series input choke:
- Rated working voltage: AC 3/380V~480V.
- Tolerance voltage test: 3.5KV, AC/50Hz/5mA/60s
- Application of frequency: 0~60Hz
- Power: 0.4~600KW
- Working noise: <55dB
- Insulation resistance: 1000VDC: >100MOhm
- Dimension (mm) K x S x G x A x B x L*Z: 120 x 76 x 110 x 70 x 47 x 7*12
Specifications:
- Rated Power (KW): 1.5.
- Rated Current (A): 2.5.
- Insulation class: F.
- Housing: T1.
| Brand | EMHEATER |
|---|
