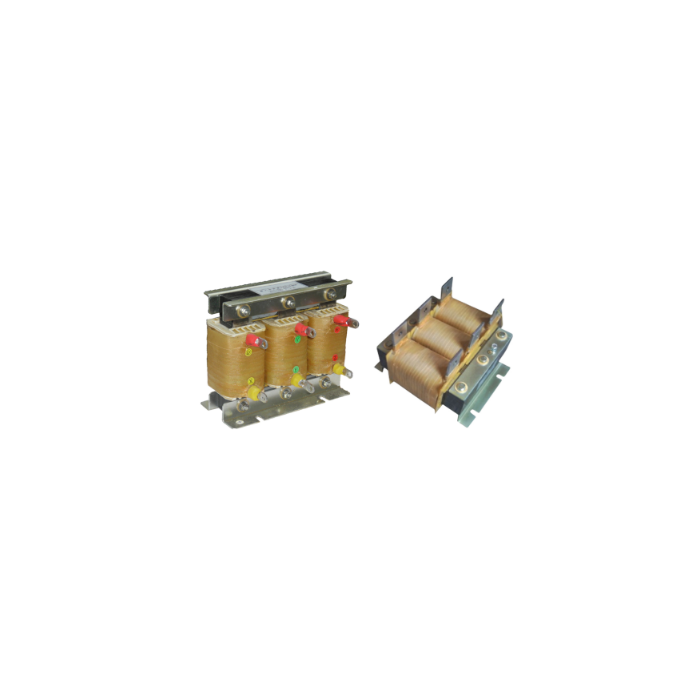

3-Phase 525V 15KW AC Input Choke
EM-RAI5 Series Input Chokes:
- Rated Power (KW): 15.
- Rated Current (A): 40.
- Insulation class: F.
- Housing: T1.
Technical Data:
- Rated working voltage: AC 3/380V~480V.
- Tolerance voltage test: 3.5KV, AC/50Hz/5mA/60s.
- Application of frequency: 0~60Hz.
- Power: 0.4~600KW.
- Working noise: <55dB.
- Insulation resistance: 1000VDC: >100MOhm.
- Dimension (mm) K x S x G x A x B x L*Z: 205 x 110 x 190 x 110 x 70 x 7*15.
| Brand | EMHEATER |
|---|
