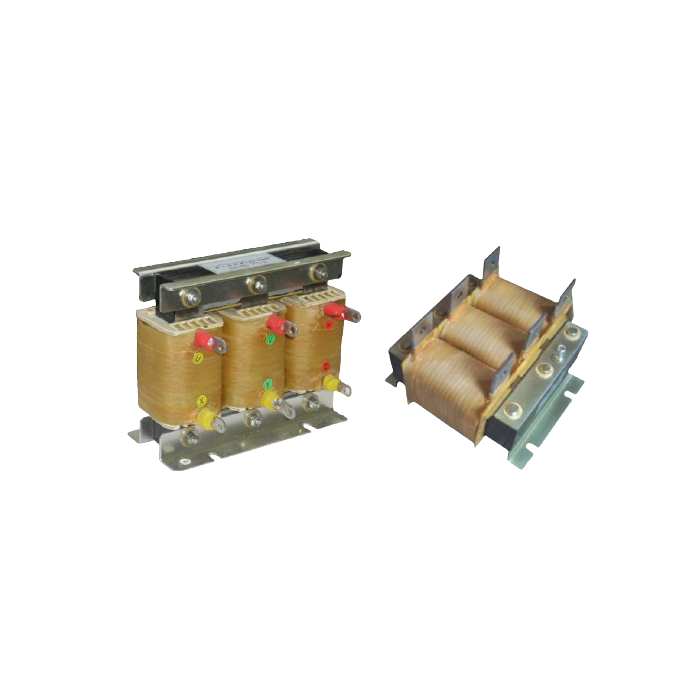

3-Phase 380V 37KW AC Output Choke

ZAR 11,221.00
Out of stock
SKU
EM-RAO3-037

Specifications:

  • Rated Power (KW): 37.
  • Rated Current (A): 75.
  • Insulation class: F.
  • Housing: T2.

Technical Data:

  • Inductance value(mH) @50Hz: 0.14.
  • Rated working voltage: AC 3/380V~480V.
  • Tolerance voltage test: 3.5KV, AC/50Hz/5mA/60s.
  • Application of frequency: 0~60Hz.
  • Power: 0.4~600KW.
  • Working noise: <65Db.
  • Insulation resistance: 1000VDC: >100MOhm.
  • Dimension (mm) K x S x G x A x B x L*Z: 205 x 135 x 163 x 110 x 88 x 7*15.

More Information
Brand EMHEATER
