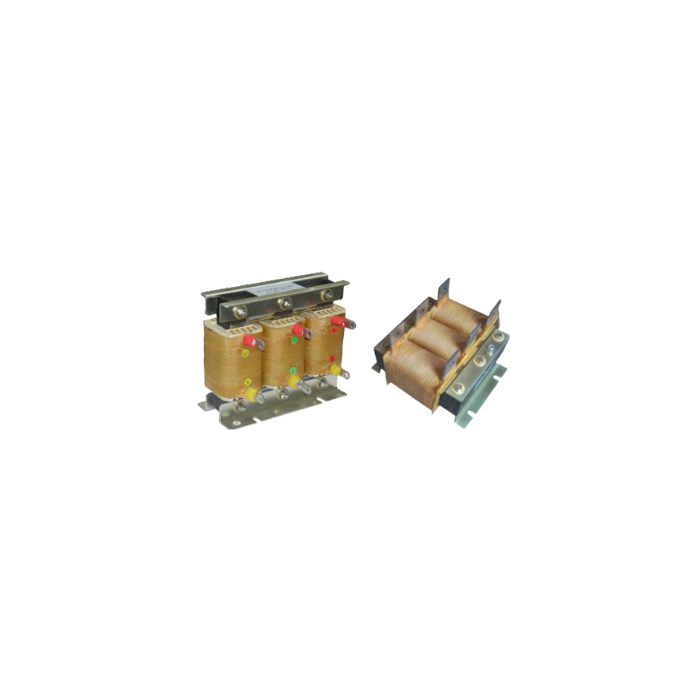

3-Phase 380V 2.2 KW AC Output Choke

ZAR 3,064.00
Out of stock
SKU
EM-RAO3-2d2

Specifications:

  • Rated Power (KW): 2.2.
  • Rated Current (A): 5.
  • Insulation class: F.
  • Housing: T1.

Technical Data:

  • Inductance value(mH) @50Hz: 2.1.
  • Rated working voltage: AC 3/380V~480V.
  • Tolerance voltage test: 3.5KV, AC/50Hz/5mA/60s.
  • Application of frequency: 0-60Hz.
  • Power: 0.4~600KW.
  • Working noise: <65Db.
  • Insulation resistance: 1000VDC: >100MOhm.
  • Dimension (mm) K x S x G x A x B x L*Z: 120 x 92 x 120 x 70 x 62 x 7*12.

More Information
Brand EMHEATER
