Programmable Logic Control, AC 100V~220V power, DC24V input 16 points, TR output 16 points
Description:

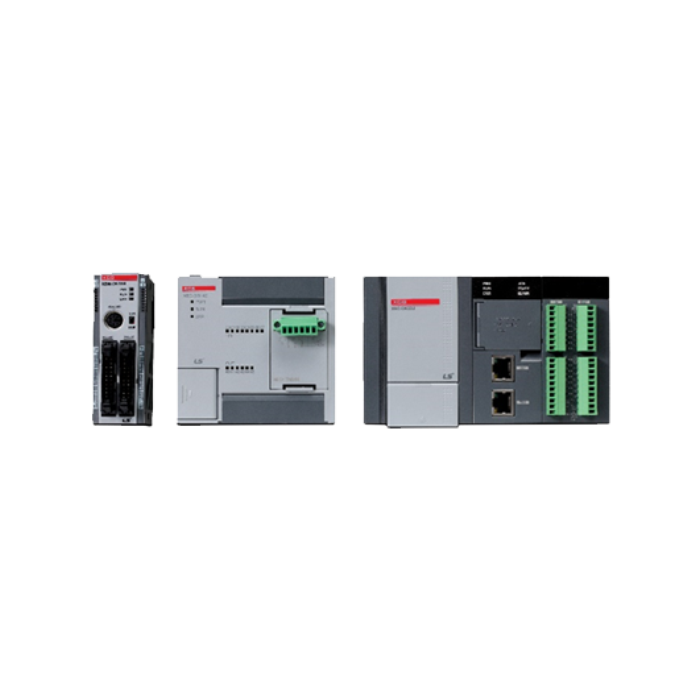

- A high-performance PLC, the LS Electric XBC-DN32H was created to satisfy the rigorous requirements of industrial automation.
- This PLC is renowned for its dependability and adaptability and is a member of the XGB series.
- It has 16 DC24V input points, 16 transistor (TR) output points, and runs on an AC power source with a range of 100V to 220V.
- The XBC-DN32H is designed to deliver accurate management and effective functioning in diverse industrial settings, guaranteeing smooth integration and peak efficiency.
Specifications:
- Input Specs:
- Input points: 16 points.
- Rated input voltage: DC 24V.
- Rated input current: 4mA (Contact 0~7: 9mA).
- Operation voltage range: DC 20.4 ~ 28.8V (Ripple rate < 5%).
- On voltage / On current: DC 19V or more/3mA or more.
- Off voltage / Off current: DC 6V or less/1mA or less.
- Input resistance: 5.6kΩ (P00 ~ P07: 2.7kΩ).
- Response Time: (Off → On) 1/3/5/10/20/70/100 Ms, (On → Off) (Setting by CPU parameter) Initial value: 3ms.
- Transistor output:
- Output point: 16 points.
- Insulation method: Photo coupler insulation.
- Rated load voltage: DC 12/24V.
- Load voltage range: DC 10.2 ~ 26.4 V.
- Max. load voltage: 0.5A / 1point (P20 ~ 23: 0.1A/point).
- Off leakage current: 0.1mA or less.
- Max. inrush current: 4A/10ms or less.
- Max. voltage drop (On): DC 0.4V or less.
- Surge absorber: Zener Diode.
- Response time: (Off → On) 1ms or less, (On → Off) 1ms or less (Rated load, resistive load).
- Common method: 4 points/COM.
- External power Supply:
- Voltage: DC 12/24V ± 10% (Ripple voltage 4 VP-p or less).
- Current: 10mA or less (DC 24V connection).
| Brand | LS Electric |
|---|
