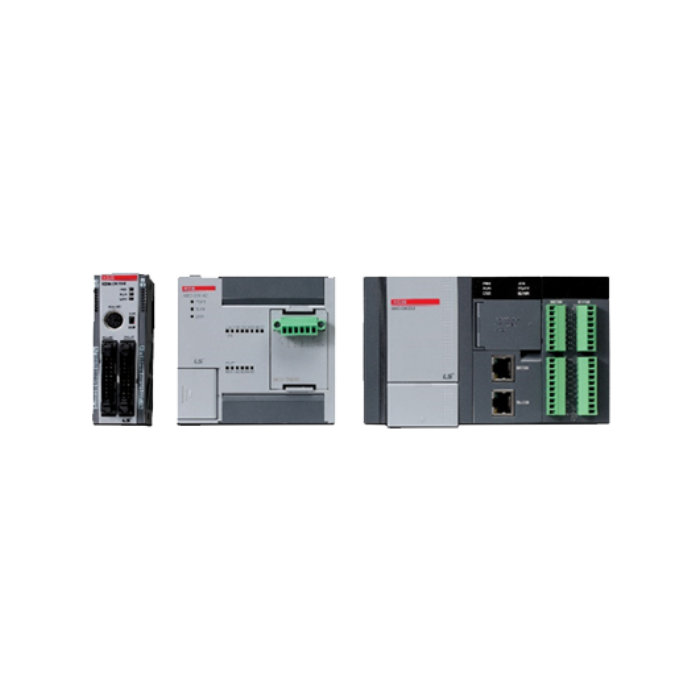

Block Type Unit (High Performance), AC 100-240V, DC24 input 16 pts, Relay output 16 pts
Description:
- A high-performance Programmable Logic Controller (PLC) for demanding industrial automation operations is the LS Electric XBC-DR32H.
- With 16 digital inputs and 16 relay outputs, this machine offers a wide range of connectivity for diverse control applications.
- It is compatible with common industrial power systems because it runs on an AC110/240V power supply.
- With a program capacity of 15,000 steps and high-speed processing capabilities of 83 ns per step, the XBC-DR32H is well-suited for intricate automation applications.
- It may be easily integrated with other systems and devices because to its integrated RS-232C and RS-485 communication connectors.
- To further increase the unit's flexibility and scalability, up to 10 further modules can be added.
Specifications:
- Supply Voltage: 100-240V AC.
- Program capacity: 15k steps.
- Relay Output Rating: 2A Resistive.
- Max. I/O points: 672
- Analogue, Input-, Output Resolution: 14-Bit
- PID Control
- High Speed Inputs
- Positioning
- Size: 114 x 90 x 64 mm
- Program control method: Reiterative operation fixed cycle operation constant scan.
- I/O control method: Scan synchronous batch processing method (Refresh method) Directed by program instruction.
- Processing speed: 0.083 ㎲/Step
- DC input: 16 points
- Relay output: 16 points.
- Internal current consumption: 660mA
- Weight: 600g
- XBC Non-IEC (Master-K Type) PLCs, E / SU / H & XBM Versions
- XBC-E Economic PLC (Master-K), 100-240V AC, 240 n/s Step, XBO Expansion Options Only
Key benefits:
- Compact
- Cost-effective
- LADDER and IEC-1131 programmable.
- From 38 to 284 I/O points
- From 94 ns/step to 240 ns/step
- From 4 to 200 Ksteps
| Brand | LS Electric |
|---|
