High Performance Block Type Unit AC 100-240V, DC24 input 32 pts, Tr.output 32 pts (Sink)
Description:

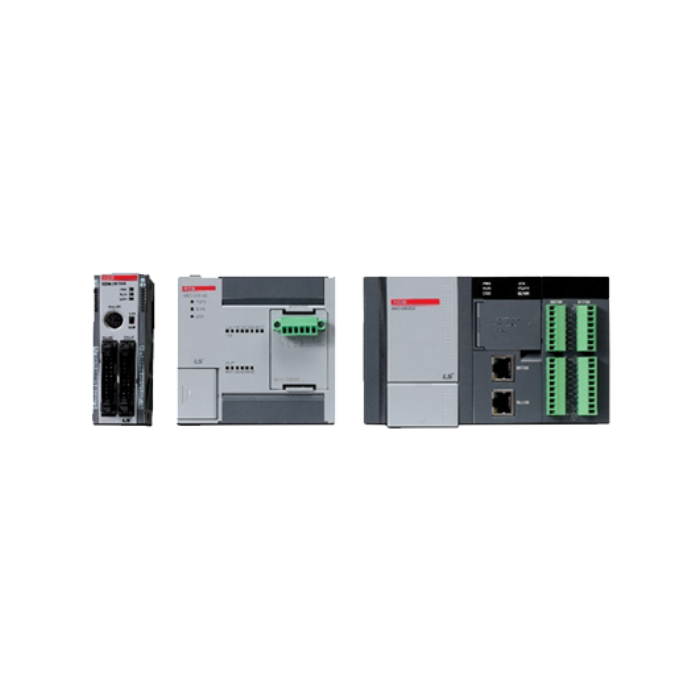

- A small and adaptable programmable logic controller (PLC) for industrial automation applications is the LS Electric XBC-DN64H.
- It is appropriate for a variety of control duties due to its sophisticated functionality and sturdy construction.
- With up to 64 input/output points supported, the XBC-DN64H offers plenty of space for intricate control systems.
- Its small size makes installation simple in spaces with limited space, and its fast-processing speed guarantees dependable and effective operation.
- The PLC has many communication interfaces, which improves its ability to integrate and connect to industrial networks.
Specifications:
- Supply Voltage: 100-140V AC.
- Program capacity: 15k steps.
- Relay Output Rating: 2A Resistive.
- Max. I/O points: 384
- Analogue, Input-, Output Resolution: 14-Bit
- PID Control
- High Speed Inputs
- Positioning
- Size: 180 x 90 x 64 mm
- Program control method: Reiterative operation fixed cycle operation constant scan.
- I/O control method: Scan synchronous batch processing method (Refresh method) Directed by program instruction.
- Processing speed: 0.083 ㎲/Step
- DC input: 36 points
- Transistor output: 32 points
- Rated voltage: AC110V~220V
- Internal current consumption: 330mA
- Weight: 800 g
- Output Type: Digital Transistor (NPN, DC 12/24V)
- Other Feature: Programming Language: LD SFC ST
Key benefits:
- Compact
- Cost-effective
- LADDER and IEC-1131 programmable.
- From 38 to 284 I/O points
| Brand | LS Electric |
|---|
