Dimensions and weights:

• Depth: 114.3 mm.
• Depth (inches): 4.5 inch.
• Height: 112.5 mm.
• Height (inches): 4.429 inch.
• Width: 6.1 mm.
• Width (inches): 0.24 inch.
• Net weight: 83.6 g.

Temperatures:

• Storage temperature: -40 °C - 85 °C.
• Operating temperature: -25 °C - 70 °C.
• Humidity at operating temperature: 0 - 95 % (no condensation).
• Humidity: 40 °C / 93 % rel. humidity, no condensation.

Probability of failure:

• SIL in compliance with IEC 61508: None.
• MTBF: 219 a.

Environmental Product Compliance:

• REACH SVHC: Lead 7439-92-1.
• SCIP: 2f6dd957-421a-46db-a0c2-cf1609156924.

Input:

• Input current: 0 - 20 mA, 4 - 20 mA.
• Input resistance, current: 70 Ω.
• Number of inputs: 1.
• Sensor: Current source, Sensor with own supply, 4-wire sensor.
• Voltage drop, current input: <1.5 V.

Output:

• Cut-off frequency (-3 dB): 100 Hz.
• Load impedance current: <300 Ω per channel @ max 23mA.
• Number of outputs: 2.
• Output current: 0 - 20 mA, 4 - 20 mA.
• Type: active, connected control must be passive.

General data:

• Accuracy: <0.05 % of measuring range.
• Configuration: none.
• Galvanic isolation: 3-way isolator.
• Power consumption, max.: 0.8 W.
• Power consumption, typ.: 0.45 W.
• Protection degree: IP20.
• Rail: TS 35.
• Step response time: ≤ 7 ms.
• Temperature coefficient: ≤ 0.01 % / °C.
• Voltage supply: 24 V DC ±30 % at terminal or via CH20M rail bus.

Insulation coordination:

• EMC standards: IEC 61326-1.
• Galvanic isolation: 3-way isolator.
• Insulation voltage: 2.5 kVeff /1 min.
• Pollution severity: 2.
• Rated voltage: 300 Veff.
• Surge voltage category: II.

Data for Ex applications (ATEX):

• Installation location: Device installed in safe area, zone 2.
• Marking: II 3 G Ex nA IIC T4 Gc.

Connection data:

• Type of connection: Screw connection.
• Tightening torque, min.: 0.4 Nm.
• Tightening torque, max.: 0.6 Nm.
• Clamping range, rated connection: 2.5 mm².
• Clamping range, min.: 0.5 mm².
• Clamping range, max.: 2.5 mm².
• Wire connection cross section AWG, min.: AWG 30.
• Wire connection cross section AWG, max.: AWG 14.

EMC conformity and approvals:

• EMC standards: IEC 61326-1.
• Safety standard: UL 61010-1.
• Ship use: DNV-GL.
• Standards: ATEX, EN 60079-0, IECEX, IEC 60079-0.

Important note:

• Product information:

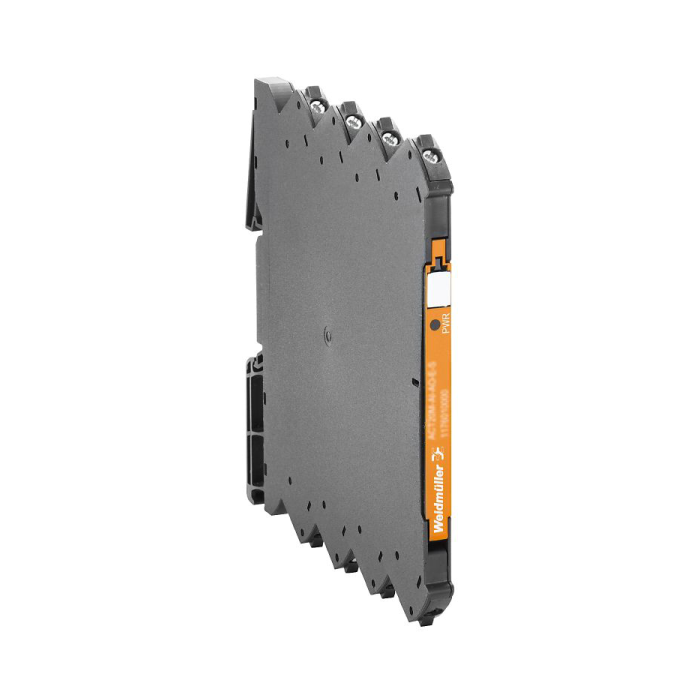

• The non-adjustable DC isolating amplifier ACT20M-CI-CO-S isolates analogue standard current signals.
• An analogue input current signal is linearly converted to an analogue output current signal and is galvanically isolated.
• The power supply is galvanically isolated from the input and output (3-way isolation) by means of direct wiring or the Weidmüller rail bus.
• The non-adjustable DC isolation amplifier ACT20M CI-2CO-S offers the same functionality but has 2 galvanically isolated outputs (4-way isolation).
