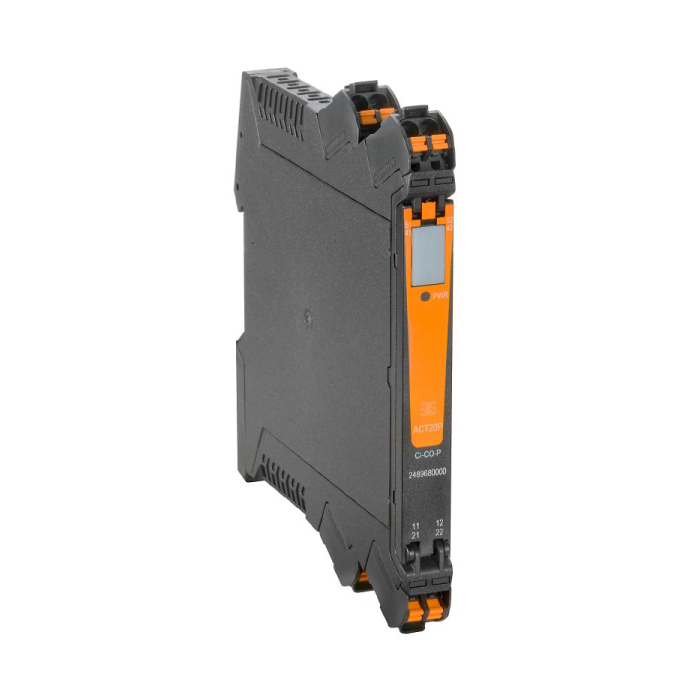

ACT20P-PRO DCDC II-P (Push In)
Pricing available on request
Description:
- The ACT20P-PRO DCDC II-P is a versatile analogue isolating amplifier intended for precise signal conversion and galvanic isolation.
- It accepts both current and voltage input/output signals and includes a wide-range power supply, DIP switch or display-based programming, and three-way isolation for added safety and versatility in industrial settings.
Specifications:
- Universal input/output: current or voltage
- Power supply: 24–230 V AC/DC ±20%
- Configuration: DIP switch or via display and pushbuttons
- Display: Green dot-matrix with ticker text
- Isolation: 3-way (input/output/supply)
- Mounting: TS 35 DIN rail
- Protection class: IP20
- Weight and Dimensions:
- Width: 12.5 mm
- Height: 127.1 mm
- Depth: 113.7 mm
- Net weight: 130 g
- Environmental Conditions:
- Operating temperature: -20°C to +60°C
- Storage temperature: up to +60°C
- Humidity: 0–95% (non-condensing)
- Operating altitude: ≤ 2000 m
- Electrical Characteristics:
- Input voltage range: ±40 mV to ±300 V
- Input current range: ±0.1 mA to +100 mA
- Output voltage: 0 to +10 V (adjustable)
- Output current: 0 to +20 mA (configurable)
- Load impedance (voltage): ≥ 1 kΩ
- Load impedance (current): ≤ 600 Ω
- Accuracy: <0.05% of measuring range
- Step response time: ≤ 50 µs
- Power consumption: ≤ 2.3 W
- Safety & Compliance:
- Rated voltage: 600 V
- Impulse withstand voltage: 5 kV
- EMC standard: EN 61326-1
- Surge category: II
- Pollution degree: 2
- RoHS compliant with exemptions (7a, 7cI)
- REACH SVHC: Lead (7439-92-1)
- SIL: Not applicable
- MTBF: 76 years
