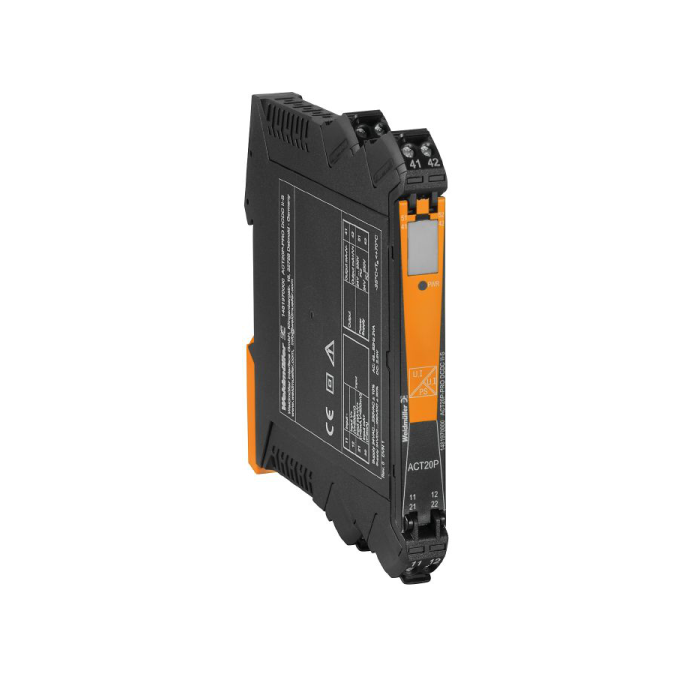

ACT20P-PRO DCDC II-S

ZAR 0.00 ZAR 0.00
Out of stock
SKU
1481970000

Pricing available on request

Description:

  • The ACT20P-PRO DCDC II-S is a fully programmable DC isolating amplifier that converts and isolates analogue signals (current or voltage) with great precision.
  • It has three-way galvanic isolation, adjustable input/output configuration, and a wide-range power supply, making it excellent for demanding industrial automation applications.

Specifications:

  • Universal input/output: current or voltage (selectable).
  • Power supply: 24–230 V AC/DC (galvanically isolated).
  • Configuration: DIP switch or via LED display and pushbuttons.
  • Display: Green dot-matrix with ticker text.
  • Isolation: 3-way (input/output/supply).
  • Mounting: TS 35 DIN rail.
  • Protection class: IP20.
  • Weight and Dimensions:
    • Width: 12.5 mm.
    • Height: 119.2 mm.
    • Depth: 113.7 mm.
    • Net weight: 130 g.
  • Environmental Conditions:
    • Operating temperature: -20°C to +60°C.
    • Storage temperature: -40°C to +85°C.
    • Humidity: 0–95% (non-condensing).
    • Operating altitude: ≤ 2000 m.
  • Electrical Characteristics:
    • Input voltage range: ±40 mV to ±300 V.
    • Input current range: ±0.1 mA to +100 mA.
    • Output voltage: 0 to +10 V (adjustable).
    • Output current: 0 to +20 mA (configurable).
    • Output type: Active (source) or passive (sink).
    • Load impedance (voltage): ≥ 1 kΩ.
    • Load impedance (current): ≤ 600 Ω.
    • Accuracy: <0.05% of measuring range.
    • Step response time: ≤ 50 µs.
    • Cut-off frequency: >10 kHz / <10 Hz.
    • Power consumption: ≤ 2.3 W.
    • Temperature coefficient: ≤ 0.01% of measuring range.
  • Safety and Compliance:
    • Rated voltage: 600 V.
    • Impulse withstand voltage: 5 kV.
    • EMC standard: EN 61326-1.
    • Surge category: II.
    • Pollution degree: 2.
    • RoHS compliant with exemptions (7a, 7cI).
    • REACH SVHC: Lead (7439-92-1).
    • SIL: Not applicable.
    • MTBF: 76 years.
  • Connection Details:
    • Type: Screw connection.
    • Clamping range: 0.5–2.5 mm².
    • AWG range: 26–12.
    • Torque: 0.4–0.6 Nm.
More Information
SKU 1481970000
Brand Weidmuller
