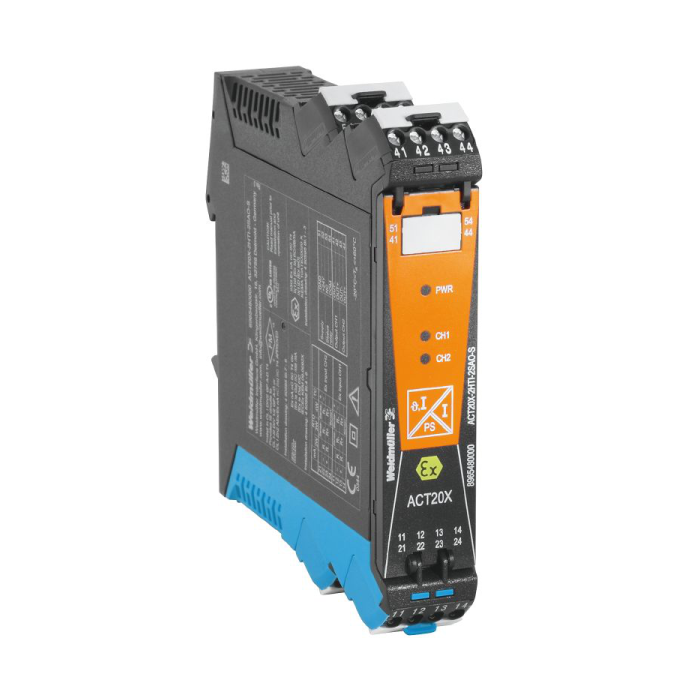

ACT20X-2SAI-2HAO-S
Description:
- Ex-output isolation amplifier with external power supply for a 2-channel HART transparent 2-channel output isolation amplifier for standard DC current signals. It can be used to transmit and isolate standard signals with a current of 4 to 20 mA from the safe zone to Ex zones 0, 1, and 2.
- Using a relay contact (NO), you can access status and error messages.
- The component can be set up with the help of common FDT and DTM software.
- Housing add-on for TS35 rail installation, Dimensions: L/W/H 119.2/ 22.5/ 113.6, nominal cross-section 2.5 mm2, screw connection; IP 20 protection level
- Input 2 x 4...20 mA
- Output 2 x 4...20 mA
- Load < 600 Ohm Kanal
- Accuracy < 0,1 % v.E
- Temperature coefficient < 0,01% v.E./°C (Tu)
- Alarm output relay 1 NO contact 250 V AC / 30 V DC @ 2A safe zone, 32 V AC @ 0.5 A/ 32 VDC @ 1 A Zone 2
- Auxiliary power 19...31.2 V DC
- Power loss approx. 3 W
- Ambient
- temperature range -20 °C... +60 °C
- Secure isolation EN 61010, 3-way isolation up to 2.6 kV AC/DC of all circuits against each other
- Working voltage 300 V AC/DC at overvoltage category II and pollution degree 2
- Approvals cULus, ATEX IECEX, FM
- ATEX marking II 3 G ExnA nC IIC T4
- ATEX characteristic data U0 = 28 V DC, I0 = 93 mA DC, P0 = 650 mW
Specifications:
- Version: EX signal isolating converter, Safe-input: 4-20mA, Ex output: 4 - 20 mA, 2-channel.
- Depth: 113.6 mm.
- Height: 119.2 mm.
- Width: 22.5 mm.
- Storage temperature: -20 °C...85 °C.
- Operating temperature: -20 °C...60 °C.
- Humidity: 0...95 % (no condensation).
- Mounting position: horizontal or vertical.
- Rail: TS 35.
- Type of mounting: Snap mounting support rail.
- Accuracy: <0.1% span.
- Configuration: With FDT/DTM software, Requires configuration adapter 8978580000 CBX200 USB.
- Power consumption: ≤1.8 W.
- Protection degree: IP20.
- Step response time: ≤ 5 Ms.
- Temperature coefficient: <0.01% of span/°C (TU).
- Type of connection: Screw connection.
- Voltage supply: 19.2…31.2 V DC.
Input:
- Input current: 4…20mA.
- Number of inputs: 2.
- Voltage drops: <2 V.
Output:
- 2-wire supply: > 14.5 V @ 20 mA.
- Influence of load resistance: ≤ 0.01% of span / 100 Ω.
- Load impedance current: ≤ 725 Ω.
- Output current: 4…20 mA (max. 23 mA).
- Output signal limit: <28 mA.
- Residual ripple (current loop): <7.5 mV eff.
- Type: intrinsically safe circuit.
Alarm output:
- Alarm function: Signal limit exceeded, Line interruption at the input, No supply voltage, Device error.
- Continuous current: ≤ 0.5 An AC / 0.3 A DC (safe zone), ≤ 0,5 An AC / 1 A DC (zone 2).
- Hysteresis: 0.1 mA (switching threshold).
- Nominal switching voltage: ≤ 125 V AC / 110 V DC (safe area), ≤ 32 V AC / 32 V DC (zone 2).
- Power rating: ≤ 62.5 VA / 32 W (safe area), ≤ 16 VA / 32 W (Zone 2).
- Switching thresholds: 0…29.9 mA (programmable).
- Type: Status relay, 1 NC (voltage-free).
| Brand | Weidmuller |
|---|
