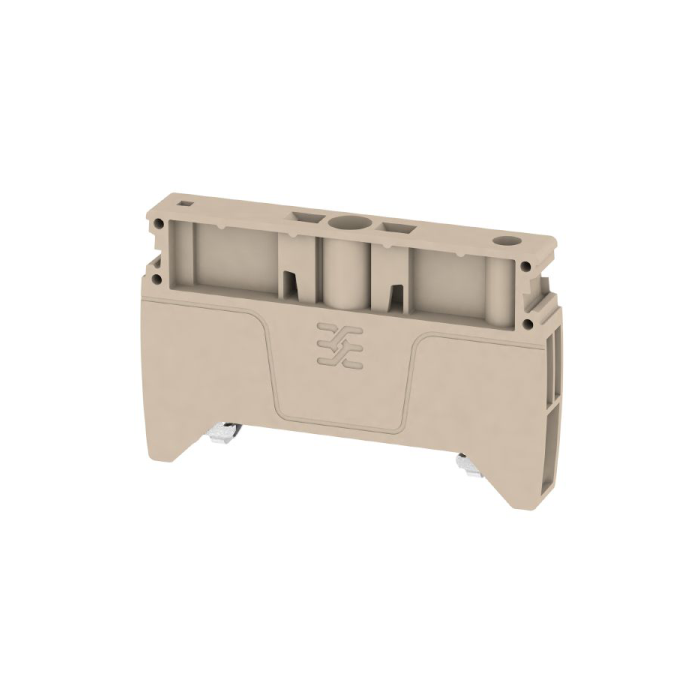

AEB 35 SC/1
AEB 35 SC/1:
- End brackets from Weidmüller's product line ensure a stable, long-lasting attachment on the terminal rail and guard against slippage.
- Versions with and without screws are available.
- The end brackets feature marking choices, including group markers, as well as a test plug holder.
Dimensions and weights:
- Depth: 36 mm.
- Depth (inches): 1.417 inch.
- Height: 58 mm.
- Height (inches): 2.283 inch.
- Width: 8 mm.
- Width (inches): 0.315 inch.
- Net weight: 12.8 g.
Temperatures:
- Storage temperature: -25 °C - 55 °C.
- Continuous operating temp., min.: -60°C.
- Continuous operating temp., max.: 130°C.
Environmental Product Compliance:
- REACH SVHC: /.
Material data:
- Material: Wemid GF 30.
- Colour: Dark beige.
- UL 94 flammability rating: V-0.
System specifications:
- Version: For the terminals.
- Rail: TS 35.
Additional technical data:
- Installation advice: Rail.
- Interlock: for screw fixing.
- Open sides: closed.
- Snap-on: No.
- Type of mounting: when screwed in.
- With snap-in pegs: No.
Conductors for clamping (rated connection):
- Tightening torque, max.: 1 Nm.
- Tightening torque, min.: 0.5 Nm.
General:
- Installation advice: Rail.
- Rail: TS 35.
| SKU | 1991920000 |
|---|---|
| Brand | Weidmuller |
