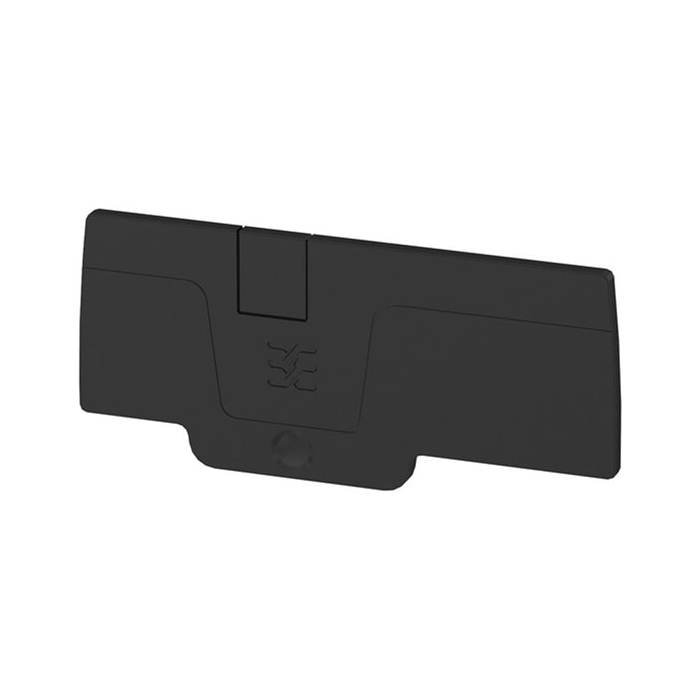

AEP 3C 4 BK End Plate
End plate, A-series:
- End plates are installed on the open side of the last modular terminal before the end bracket.
- Using an end plate ensures the modular terminal functions properly and meets the stated rated voltage.
- It ensures that no live parts will come into touch with the terminal and renders the terminal finger-proof.
Specifications weights and dimensions:
- Depth: 32.35 mm.
- Height: 71.9 mm.
- Width: 2.1 mm.
- Net weight: 2.55 g.
Temperatures:
- Storage temperature range: -25°C - 55°C.
- Continuous operating temperature, minimum: -60°C.
- Continuous operating temperature, maximum: 130 °C.
Material data:
- Material: Wemide.
- Colour: Black.
- UL 94 flammability rating: V-0.
System requirements:
- Version: End plate.
Additional technical details:
- Snap-on: Yes.
- With snap-in pegs: Yes.
| Brand | Weidmuller |
|---|
