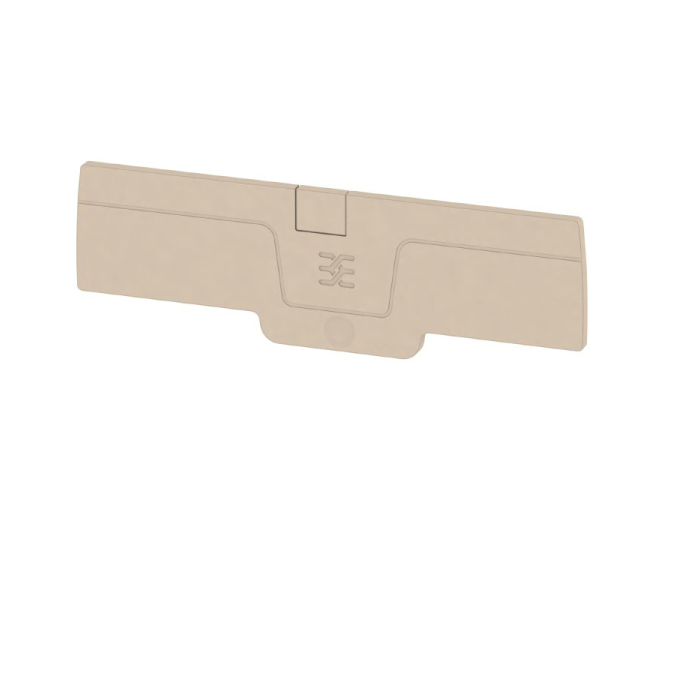

AEP DT 2.5 4C End Plate
AEP DT 2.5 3C:
- End plates are installed on the open side of the last modular terminal before the end bracket.
- Using an end plate ensures the modular terminal functions properly and meets the stated rated voltage.
- It provides protection from contact with live parts and makes the end terminal finger-proof.
Dimensions and weights:
- Depth: 29.1 mm.
- Depth (inches): 1.146 inch.
- Height: 94.25 mm.
- Height (inches): 3.711 inch.
- Width: 2.1 mm.
- Width (inches): 0.083 inch.
- Net weight: 2.783 g.
Temperatures:
- Storage temperature: -25 °C - 55 °C.
- Continuous operating temp., min.: -60°C.
- Continuous operating temp., max.: 130°C.
Environmental Product Compliance:
- REACH SVHC: /.
Material data:
- Material: Wemid.
- Colour: dark beige.
- UL 94 flammability rating: V-0.
System specifications:
- Version: End plate.
Additional technical data:
- Snap-on: Yes.
- With snap-in pegs: Yes.
| SKU | 1989980000 |
|---|---|
| Brand | Weidmuller |
