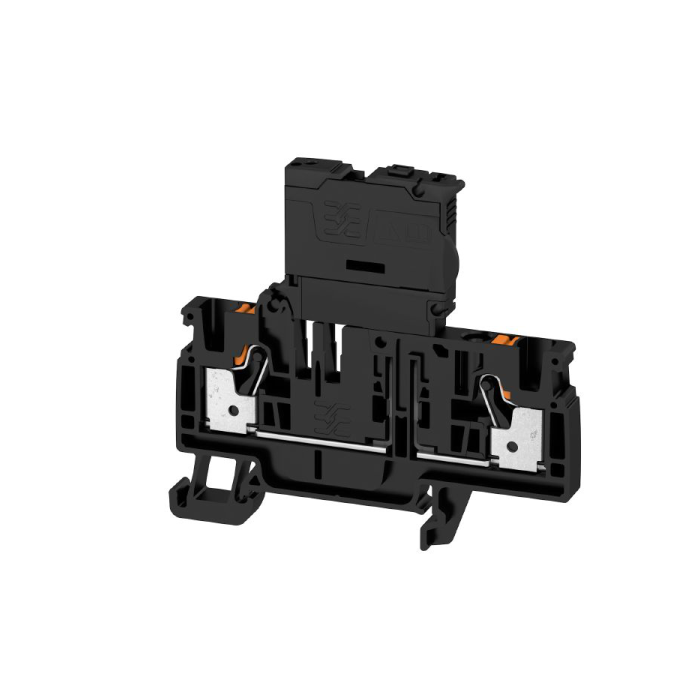

Material data:

• Material: Wemid.
• Colour: Black.
• UL 94 flammability rating: V-0.

Rating data IECEx/ATEX:

• Certificate No. (ATEX): TUEV17ATEX8064U.
• Certificate No. (IECEX): IECEXTUR17.0030U.
• Max. voltage (ATEX): 250 V.
• Current (ATEX): 6.3 A.
• Wire cross section max. (ATEX): 4 mm².
• Max. voltage (IECEX): 250 V.
• Current (IECEX): 6.3 A.
• Wire cross section max. (IECEX): 4 mm².
• Marking EN 60079-7: Ex ec II C Gc.
• Ex 2014/34/EU label: II 2 G D.

System specifications:

• End cover plate required: Yes.
• Number of potentials: 1.
• Number of levels: 1.
• Number of clamping points per level: 2.
• Number of potentials per tier: 1.
• PE connection: No.
• Rail: TS 35.
• N-function: No.
• PE function: No.
• PEN function: No.

Additional technical data:

• Installation advice: Rail.
• Open sides: right.
• Snap-on: No.
• Type of fixing: Snap-on.
• Type of mounting: TS 35.
• With snap-in pegs: No.

Conductors for clamping (additional connection):

• Connection type, additional connection: PUSH IN.

Conductors for clamping (rated connection):

• Blade size: 0.6 x 3.5 mm.
• Clamping range, max.: 6 mm².
• Clamping range, min.: 0.14 mm².
• Connection cross-section, stranded, max.: 6 mm².
• Connection cross-section, stranded, min.: 0.5 mm².
• Connection direction: top.
• Gauge to IEC 60947-1: A4.
• Number of connections: 2.
• Stripping length: 12 mm.
• Tube length for twin wire-end ferrule:
• Tube length:
• min.: 8 mm.
• max.: 12 mm.
• Cross-section for conductor connection:
• min.: 0.5 mm².
• max.: 1.5 mm².
• Tube length for wire-end ferrule with plastic collar DIN 46228/4:
• Tube length:
• min.: 8 mm.
• max.: 12 mm.
• Cross-section for conductor connection:
• min.: 0.5 mm².
• max.: 1.5 mm².
• Tube length:
• min.: 7 mm.
• max.: 12 mm.
• Cross-section for conductor connection:
• min.: 1.5 mm².
• max.: 2.5 mm².
• Tube length:
• min.: 9 mm.
• max.: 15 mm.
• Cross-section for conductor connection:
• nominal: 4 mm².
• min.: 4 mm².
• max.: 6 mm².
• Tube length for wire-end ferrule without plastic collar DIN 46228/1:
• Tube length:
• min.: 8 mm.
• max.: 12 mm.
• Cross-section for conductor connection:
• min.: 0.5 mm².
• max.: 1.5 mm².
• Tube length:
• min.: 7 mm.
• max.: 12 mm.
• Cross-section for conductor connection:
• min.: 1.5 mm².
• max.: 2.5 mm².
• Tube length:
• min.: 9 mm.
• max.: 15 mm.
• Cross-section for conductor connection:
• nominal: 4 mm².
• min.: 4 mm².
• max.: 6 mm².
• Twin wire-end ferrules, max.: 1.5 mm².
• Twin wire-end ferrules, min.: 0.5 mm².
• Type of connection: PUSH IN.
• Type of connection 2: PUSH IN.
• Wire connection cross section AWG, max.: AWG 12.
• Wire connection cross section AWG, min.: AWG 26.
• Wire connection cross section, finely stranded, max.: 6 mm².
• Wire connection cross section, finely stranded, min.: 0.5 mm².
• Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.: 6 mm².
• Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.: 0.5 mm².
• Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.: 4 mm².
• Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.: 0.5 mm².
• Wire connection cross-section, solid core, max.: 4 mm².
• Wire connection cross-section, solid core, min.: 0.5 mm².

CSA rating data:

• Certificate No. (CSA): 200039-70089609.
• Current size B (CSA): 10 A.
• Current size C (CSA): 10 A.
• Current size D (CSA): 10 A.
• Voltage size B (CSA): 300 V.
• Voltage size C (CSA): 150 V.
• Voltage size D (CSA): 300 V.
• Wire cross section max. (CSA): 10 AWG.
• Wire cross section min. (CSA): 26 AWG.

Fuse terminals:

• Cartridge fuse: G-Si. 5 x 20.
• Leakage current, max.: 0.5 mA.
• Operating voltage, max.: 250 V.
• Power loss for overload and short-circuit protection for a composite arrangement: 1.6 W at 6.3 A @ 34°C.
• Power loss for overload and short-circuit protection for an individual arrangement: 1,6 W bei 6,3 A @ 31 °C.
• Power loss for short-circuit protection only for a composite arrangement: 2,5 W bei 6,3 A @ 32 °C.
• Power loss for short-circuit protection only for an individual arrangement: 4,0 W bei 6,3 A @ 41 °C.

General:

• Installation advice: Rail.
• Rail: TS 35.
• Standards: In accordance with IEC 60947-7-3.
• Wire connection cross section AWG, max.: AWG 12.
• Wire connection cross section AWG, min.: AWG 26.

Rating data:

• Rated cross-section: 4 mm².
• Rated voltage: 400 V.
• Rated voltage to adjoining terminal: 500 V.
• Rated DC voltage: 400 V.
• Rated current: 6.3 A.
• Current at maximum wires: 6.3 A.
• Standards: In accordance with IEC 60947-7-3.
• Volume resistance according to IEC 60947-7-x: 1 mΩ.
• Rated impulse withstand voltage: 4 kV.
• Power loss in accordance with IEC 60947-7-x: 1.02 W.
• Pollution severity: 3.
• Surge voltage category: III.

UL rating data:

• Certificate No. (cURus): E60693.
• Conductor size Factory wiring max. (cURus): 10 AWG.
• Conductor size Factory wiring min. (cURus): 26 AWG.
• Conductor size Field wiring max. (cURus): 10 AWG.
• Conductor size Field wiring min. (cURus): 26 AWG.
• Current size B (cURus): 10 A.
• Current size C (cURus): 10 A.
• Current size D (cURus): 10 A.
• Voltage size B (cURus): 300 V.
• Voltage size C (cURus): 150 V.
• Voltage size D (cURus): 300 V.

Important note:

• Product information: The voltage depends on the selected fuse element or the selected indicator light.
