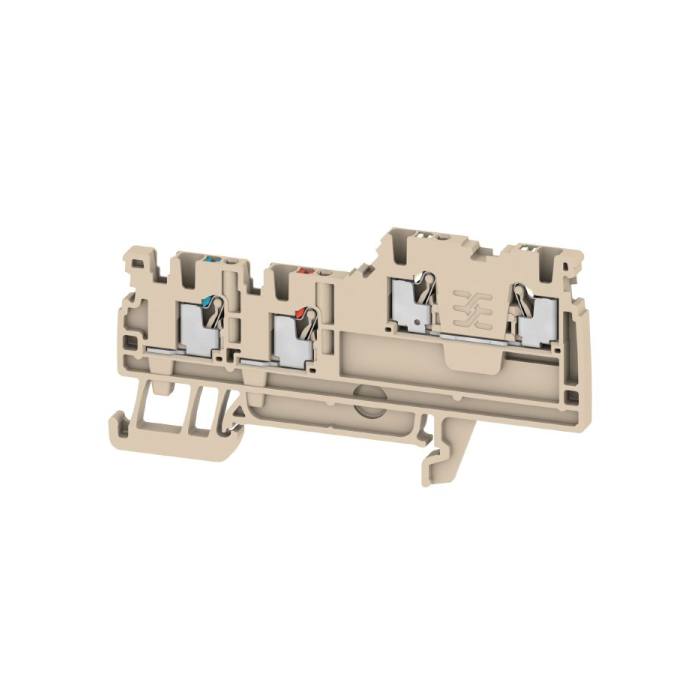

Temperatures:

• Storage temperature: -25 °C - 55 °C.
• Continuous operating temp., min.: -60 °C.
• Continuous operating temp., max.: 130 °C.

Environmental Product Compliance:

• REACH SVHC: /.

Material data:

• Material: Wemid.
• Colour: dark beige.
• Colour of operational elements: blue, red, white.
• UL 94 flammability rating: V-0.

Rating data IECEx/ATEX:

• Certificate No. (ATEX): TUEV17ATEX8031U.
• Certificate No. (IECEX): IECEXTUR17.0016U.
• Max. voltage (ATEX): 220 V.
• Current (ATEX): 12 A.
• Wire cross section max. (ATEX): 1.5 mm².
• Max. voltage (IECEX): 220 V.
• Current (IECEX): 12 A.
• Wire cross section max. (IECEX): 1.5 mm².
• Marking EN 60079-7: Ex eb II C Gb.
• Ex 2014/34/EU label: II 2 G D.

System specifications:

• End cover plate required: Yes.
• Number of potentials: 3.
• Number of levels: 2.
• Levels cross-connected internally: No.
• PE connection: No.
• Rail: TS 35.
• N-function: Yes.
• PE function: No.
• PEN function: No.

Additional technical data:

• Installation advice: Rail.
• Open sides: right.
• Snap-on: No.
• Type of fixing: Snap-on.
• Type of mounting: TS 35.
• With snap-in pegs: No.

Conductors for clamping (rated connection):

• Blade size: 0.4 x 2.0 mm.
• Clamping range, max.: 1.5 mm².
• Clamping range, min.: 0.14 mm².
• Connection cross-section, stranded, max.: 1.5 mm².
• Connection cross-section, stranded, min.: 0.5 mm².
• Connection direction: top.
• Gauge to IEC 60947-1: A1.
• Number of connections: 4.
• Stripping length: 8 mm.
• Tube length for wire-end ferrule with plastic collar DIN 46228/4:
• Tube length:
• min.: 6 mm.
• max.: 8 mm.
• Cross-section for conductor connection:
• nominal: 0.25 mm².
• min.: 0.14 mm².
• max.: 0.75 mm².
• Tube length for wire-end ferrule without plastic collar DIN 46228/1:
• Tube length:
• min.: 6 mm.
• max.: 8 mm.
• Cross-section for conductor connection:
• nominal: 0.25 mm².
• min.: 0.14 mm².
• max.: 0.75 mm².
• Tube length:
• nominal: 6 mm.
• Cross-section for conductor connection:
• min.: 0.5 mm².
• max.: 1 mm².
• Tube length:
• nominal: 10 mm.
• Cross-section for conductor connection:
• nominal: 1.5 mm².
• Type of connection: PUSH IN.
• Wire connection cross section AWG, max.: AWG 14.
• Wire connection cross section AWG, min.: AWG 26.
• Wire connection cross section, finely stranded, max.: 1.5 mm².
• Wire connection cross section, finely stranded, min.: 0.5 mm².
• Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.: 1.5 mm².
• Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.: 0.5 mm².
• Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.: 1 mm².
• Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.: 0.5 mm².
• Wire connection cross-section, solid core, max.: 1.5 mm².
• Wire connection cross-section, solid core, min.: 0.5 mm².

CSA rating data:

• Certificate No. (CSA): 200039-70089609.
• Current size D (CSA): 13 A.
• Voltage size D (CSA): 150 V.
• Wire cross section max. (CSA): 14 AWG.
• Wire cross section min. (CSA): 26 AWG.

General:

• Installation advice: Rail.
• Rail: TS 35.
• Standards: In accordance with IEC 60947-7-1.
• Wire connection cross section AWG, max.: AWG 14.
• Wire connection cross section AWG, min.: AWG 26.

Rating data:

• Rated cross-section: 1.5 mm².
• Rated voltage: 250 V.
• Rated DC voltage: 250 V.
• Rated current: 13.5 A.
• Current at maximum wires: 13.5 A.
• Standards: In accordance with IEC 60947-7-1.
• Volume resistance according to IEC 60947-7-x: 1.83 mΩ.
• Rated impulse withstand voltage: 4 kV.
• Power loss in accordance with IEC 60947-7-x: 0.56 W.
• Pollution severity: 3.
• Surge voltage category: III.

UL rating data:

• Certificate No. (cURus): E60693.
• Conductor size Factory wiring max. (cURus): 14 AWG.
• Conductor size Factory wiring min. (cURus): 26 AWG.
• Conductor size Field wiring max. (cURus): 14 AWG.
• Conductor size Field wiring min. (cURus): 26 AWG.
• Current size D (cURus): 13 A.
• Voltage size D (cURus): 150 V.

Important note:

• Product information: For the wire end ferrules H1/10 and H1.5/10 a stripping length of 10 mm is to apply.
