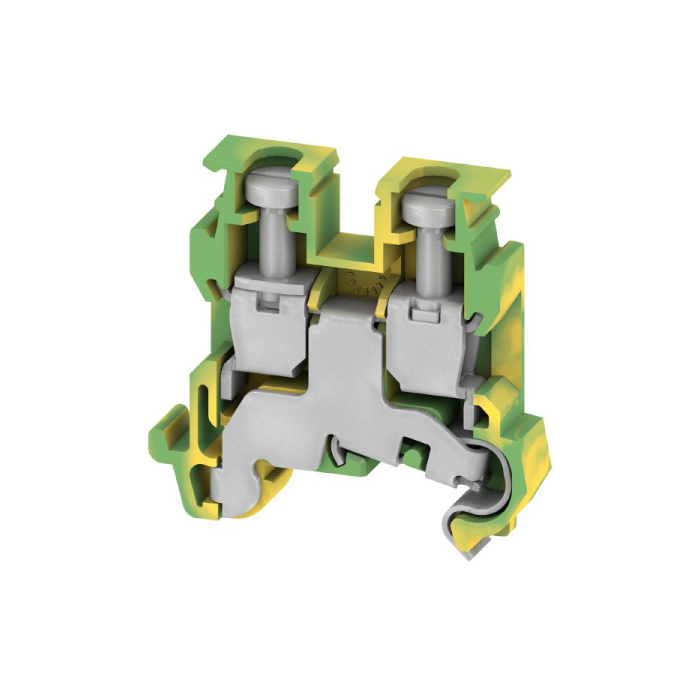

AKE 2.5

ZAR 0.00 ZAR 0.00
Out of stock
SKU
1303360000

Pricing available on request

AKE 2.5:

  • There are numerous uses for a protective feed through terminal block, which is an electrical conductor used for safety.
  • To determine the mechanical and electrical safety.
  • PE terminal blocks are used to connect copper wires to the mounting support plate.
  • They've got one or more places of contact where protective earth conductors can be divided or connected.

Material data:

  • Material: Wemid
  • Colour: yellow, green
  • UL 94 flammability rating: V-2

Dimensions and weights:

  • Depth: 26 mm
  • Depth including DIN rail: 28 mm
  • Height: 28 mm
  • Width: 5.1 mm
  • Net weight: 4.374 g

Temperatures:

  • Storage temperature: -25 °C...55 °C
  • Operating temperature range: For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity
  • Continuous operating temp., min.: -60 °C
  • Continuous operating temp., max.: 130 °C

Rating data:

  • Rated cross-section: 2.5 mm²
  • Rated voltage to adjoining terminal: 250 V
  • Standards: IEC 60947-7-2
  • Volume resistance according to IEC 60947-7-x: 1.33 mΩ
  • Rated impulse withstand voltage to adjacent terminal: 4 kV
  • Power loss in accordance with IEC 60947-7-x: 0.77 W
  • Pollution severity: 3
More Information
SKU 1303360000
Brand Weidmuller
