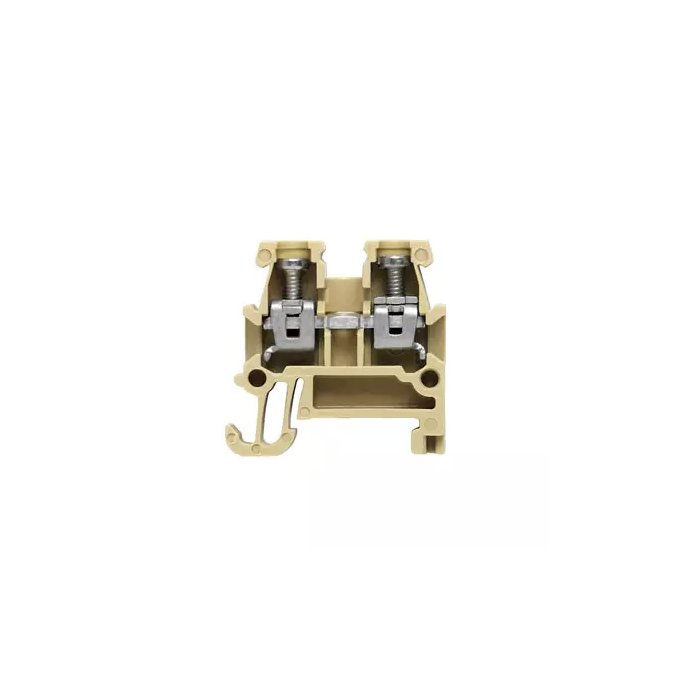

Specifications weights and dimensions:

• Depth: 9.9 mm.
• Height: 4 mm.
• Width: 23.3 mm.
• Net weight: 3.06 g.

Temperatures:

• Storage temperature: -25 °C...55 °C.
• Operating temperature range: For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity.
• Continuous operating temp., min.: -60 °C.
• Continuous operating temp., max.: 130 °C.

Material data:

• Material: PA 66.
• Colour: beige / yellow.
• UL 94 flammability rating: V-2.

Rating data IECEx/AREX:

• Certificate No. (ATEX): TUEV18ATEX8221U.
• Certificate No. (IECEX): IECEXTUR18.0024U.
• Max. voltage (ATEX): 220 V.
• Current (ATEX): 17.5 A.
• Wire cross section max. (ATEX): 2.5 mm².
• Max. voltage (IECEX): 220 V.
• Current (IECEX): 17.5 A.
• Wire cross section max. (IECEX): 2.5 mm².
• Operating temperature range: For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity.
• Marking EN 60079-7: Ex eb II C Gb.
• Ex 2014/34/EU label: II 2 G D.

System specifications:

• Version: Screw connection, for screwable cross-connection, One end without connector.
• End cover plate required: Yes.
• Number of potentials: 1.
• Number of levels: 1.
• Number of clamping points per level: 2.
• Number of potentials per tier: 1.
• Levels cross-connected internally: No.
• PE connection: No.
• Rail: TS 15.
• N-function: No.
• PE function: No.
• PEN function: No.

Additional technical data:

• Explosion-tested version: Yes.
• Number of similar terminals: 1.
• Open sides: right.
• Type of mounting: Clamped.

CSA rating data:

• Certificate No. (CSA): 12400-144.
• Current size C (CSA): 10 A.
• Voltage size C (CSA): 300 V.
• Wire cross section max. (CSA): 16 AWG.
• Wire cross section min. (CSA): 24 AWG.

Conductors for clamping (additional connection):

• Connection type, additional connection: Screw connection.

Conductors for clamping (rated connection):

• Blade size: 3.0 x 0.5 mm.
• Clamping range, max.: 2.5 mm².
• Clamping range, min.: 0.21 mm².
• Clamping screw: M 2.5.
• Connection cross-section, stranded, max.: 1.5 mm².
• Connection cross-section, stranded, min.: 1.5 mm².
• Connection direction: on side.
• Gauge to IEC 60947-1: A1.
• Number of connections: 2.
• Stripping length: 7 mm.
• Tightening torque, max.: 0.6 Nm.
• Tightening torque, min.: 0.4 Nm.
• Torque level with DMS electric screwdriver: 1.
• Twin wire-end ferrules, max.: 0.75 mm².
• Twin wire-end ferrules, min.: 0.5 mm².
• Type of connection: Screw connection.
• Wire connection cross section AWG, max.: AWG 14.
• Wire connection cross section AWG, min.: AWG 24.
• Wire connection cross section, finely stranded, max.: 1.5 mm².
• Wire connection cross section, finely stranded, min.: 0.5 mm².
• Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.: 1.5 mm².
• Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.: 0.5 mm².
• Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.: 1.5 mm².
• Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.: 0.5 mm².
• Wire connection cross-section, solid core, max.: 2.5 mm².
• Wire connection cross-section, solid core, min.: 0.5 mm².

Dimensions:

• TS 15 offset: 12.4 mm.

General:

• Number of poles: 1.
• Rail: TS 15.
• Standards: IEC 60947-7-1.
• Wire connection cross section AWG, max.: AWG 14.
• Wire connection cross section AWG, min.: AWG 24.

Rating data:

• Rated cross-section: 1.5 mm².
• Rated voltage: 250 V.
• Rated DC voltage: 250 V.
• Rated current: 17.5 A.
• Current at maximum wires: 24 A.
• Standards: IEC 60947-7-1.
• Volume resistance according to IEC 60947-7-x: 1.83 mΩ.
• Rated impulse withstand voltage: 4 kV.
• Power loss in accordance with IEC 60947-7-x: 0.56 W.
• Pollution severity: 3.

UL rating data:

• Certificate No. (UR): E60693.
• Conductor size Factory wiring max. (UR): 14 AWG.
• Conductor size Factory wiring min. (UR): 22 AWG.
• Conductor size Field wiring max. (UR): 14 AWG.
• Conductor size Field wiring min. (UR): 22 AWG.
• Current size C (UR): 15 A.
• Voltage size C (UR): 150 V.
