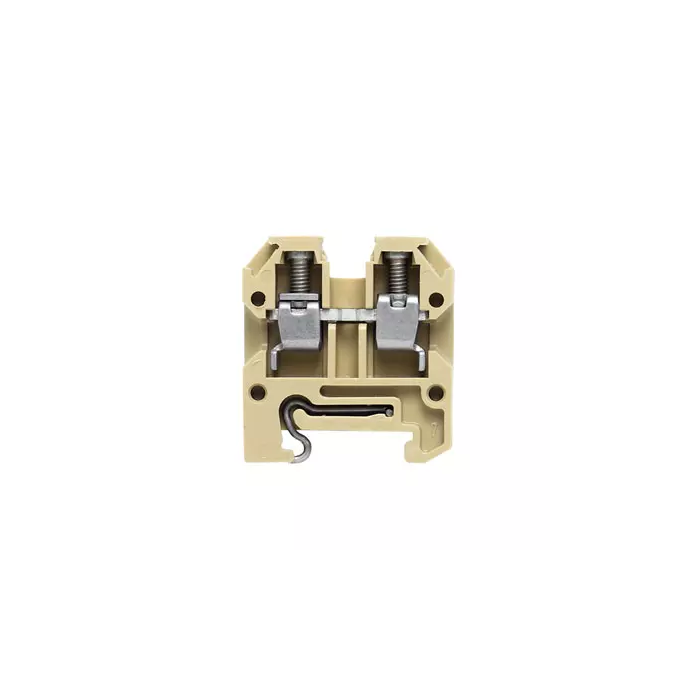

AKZ 4
AKZ 4:
- In electrical engineering and panel building, the classical requirement is to pass through power, signal, and data.
- The insulating material, the connection system, and the design of the terminal blocks are the differentiating features.
- One or more conductors can be joined or connected using a feed-through terminal block.
- They may have one or more connection levels that are insulated or have the same potential against one another.
Specifications weights and dimensions:
- Depth: 29 mm.
- Height: 30.5 mm.
- Width: 6.1 mm.
- Net weight: 5.17 g.
Temperatures:
- Storage temperature -25 °C...55 °C.
- Operating temperature range: For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity.
- Continuous operating temp., min: -60 °C.
- Continuous operating temp., max: 130 °C.
Material data:
- Material: Wemid.
- Colour: dark beige.
- UL 94 flammability rating: V-0.
Additional technical data:
- Explosion-tested version: Yes.
- Number of similar terminals: 1.
- Open sides: right.
- Type of mounting: Snap-on.
Dimensions:
- TS 15 offset: 13.5 mm.
General:
- Number of poles: 1.
- Rail TS: 15.
- Standards: IEC 60947-7-1.
- Wire connection cross section AWG, max: AWG 12.
- Wire connection cross section AWG, min: AWG 24.
Rating data:
- Rated cross-section: 4 mm².
- Rated voltage: 400 V.
- Rated DC voltage: 400 V.
- Rated current: 32 A.
- Current at maximum wires: 41 A.
- Standards: IEC 60947-7-1.
- Volume resistance according to IEC 60947-7-x: 1 mΩ.
- Rated impulse withstand voltage: 6 kV.
- Power loss in accordance with IEC 60947-7-x: 1.02 W.
- Pollution severity: 3.
| Brand | Weidmuller |
|---|
