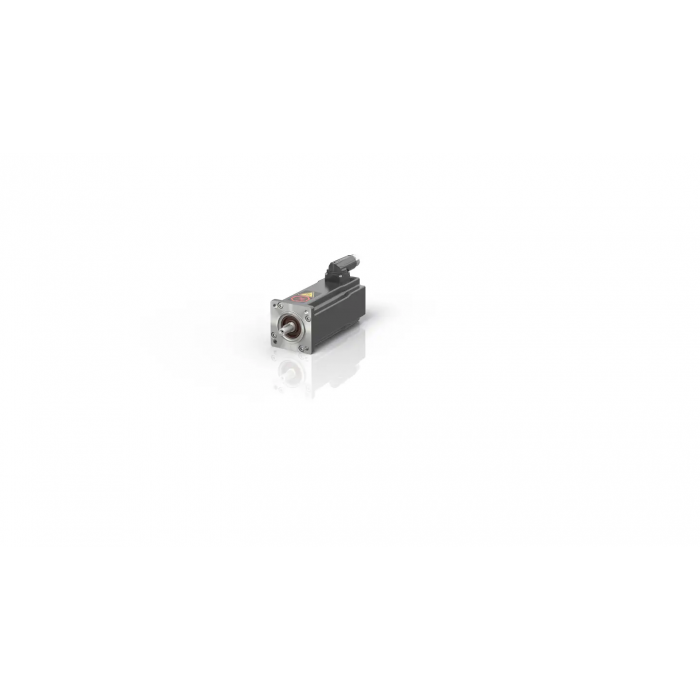

AM8021-2D00 Servomotor 0.50 Nm (M0), F2 (58 mm)
Motor type: permanent magnet-excited three-phase synchronous motor
Nominal voltage: 100…480 V AC
Standstill torque: 0.50 Nm
Rated torque: 0.50 Nm
Peak torque: 2.67 Nm
Rated speed: 9000 min-1
Rated power: 0.47 kW
Standstill current: 1.60 A
Peak current: 8.60 A
Torque constant: 0.31 Nm/A
Rotor moment of inertia: 0.139 kgcm²
Motor feedback: OCT, 18 bit, OCT, 24 bit, SIL 2-capable, resolver, single-turn absolute encoder, multi-turn absolute encoder
Cooling: convection
Connection technology: itec® plug
Ambient temperature (operation): +5…+40 °C
Approvals/markings: CE, cURus, EAC
The AM8021 standard servomotor is suitable for drive solutions with highest demands on dynamics and performance in the 100…480 V AC voltage range. The standstill torque of the motor depends on the winding and is in the range of < 1.5 Nm. It is available with the OCT feedback system (absolute encoder). The standard servomotor with flange code F2 (58 mm) and motor length 1 has a shaft diameter b = 9 k6 and a free shaft end of d = 20 mm.
| SKU | AM8021-2D00 |
|---|
