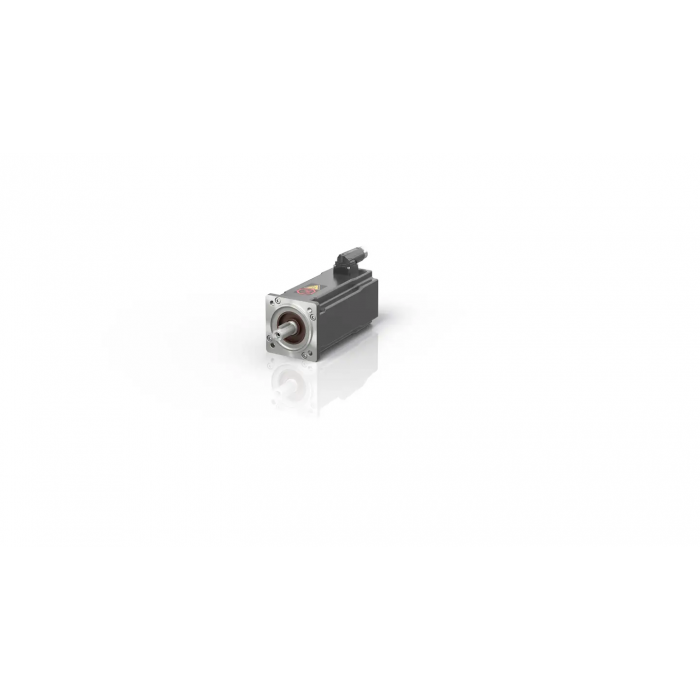

AM8032-0D00 Servomotor 2.38 Nm (M0), F3 (72 mm)
Motor type:permanent magnet-excited three-phase synchronous motor
Nominal voltage: 100…480 V AC
Standstill torque: 2.38 Nm
Rated torque: 2.30 Nm
Peak torque: 11.66 Nm
Rated speed: 3000 min-1
Rated power: 0.72 kW
Standstill current: 1.70 A
Peak current: 9.6 A
Torque constant: 1.40 Nm/A
Rotor moment of inertia: 0.847 kgcm²
Motor feedback: OCT, 18 bit, OCT, 24 bit, SIL 2-capable, resolver, single-turn absolute encoder, multi-turn absolute encoder
Cooling: convection
Connection technology: itec® plug
Ambient temperature (operation): +5…+40 °C
Approvals/markings: CE, cURus, EAC
The AM8032 standard servomotor is suitable for drive solutions with highest demands on dynamics and performance in the 100…480 V AC voltage range. The standstill torque of the motor depends on the winding and is 2.38 Nm or 2.37 Nm. It is available with the OCT feedback system (absolute encoder). The standard servomotor with flange code F3 (72 mm) and motor length 2 has a shaft diameter b = 14 k6 and a free shaft end of d = 30 mm.
| SKU | AM8032-0D00 |
|---|
