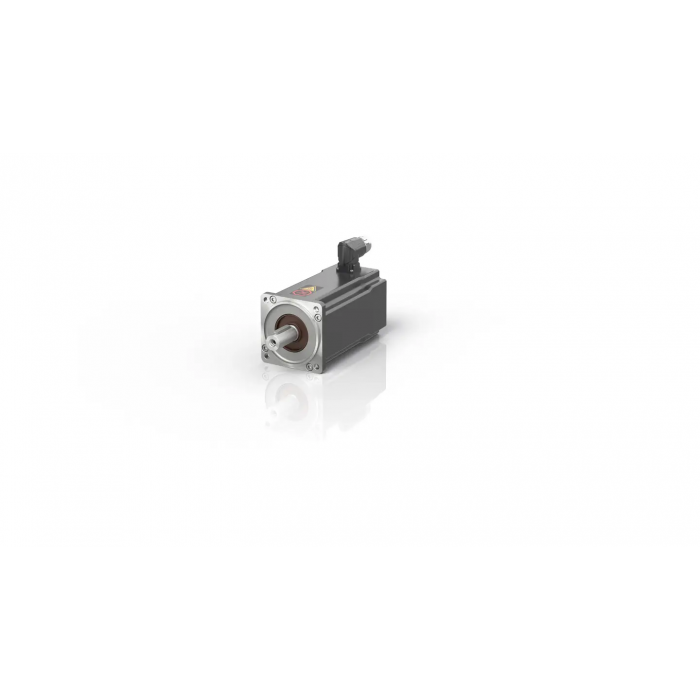

AM8044-2J20 Servomotor 7.10 Nm (M0), F4 (87 mm)
Motor type: permanent magnet-excited three-phase synchronous motor
Nominal voltage: 100…480 V AC
Standstill torque: 7.10 Nm
Peak torque: 37.8 Nm
Rated speed: 5000 min-1
Rated power: 3.14 kW
Standstill current: 6.80 A
Peak current: 40.0 A
Torque constant: 1.04 Nm/A
Rotor moment of inertia: 3.76 kgcm²
Cooling: convection
Connection technology: M23 speedtec® plug
Ambient temperature (operation): +5…+40 °C
Approvals/markings: CE, cURus in preparation, EAC
The AM8044 standard servomotor is suitable for drive solutions with highest demands on dynamics and performance in the 100…480 V AC voltage range. The standstill torque of the motor depends on the winding and is in the range of 7.10 Nm. It is available with the OCT feedback system (absolute encoder). The standard servomotor with flange code F4 (87 mm) and motor length 4 has a shaft diameter b = 19 k6 and a free shaft end of d = 40 mm.
| SKU | AM8044-2J20 |
|---|
