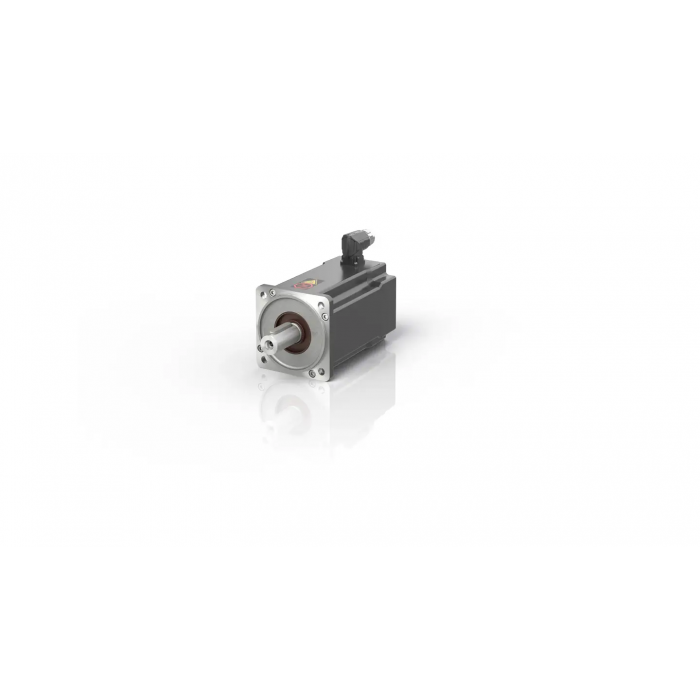

AM8053-2J20 Servomotor 15.4 Nm (M0), F5 (104 mm)
Motor type: permanent magnet-excited three-phase synchronous motor
Nominal voltage: 100…480 V AC
Standstill torque: 15.4 Nm
Rated torque: 14.9 Nm
Peak torque: 53.1 Nm
Rated speed: 2000 min-1
Rated power: 3.12 kW
Standstill current: 6.40 A
Peak current: 26.9 A
Torque constant: 2.42 Nm/A
Rotor moment of inertia: 5.93 kgcm²
Motor feedback: OCT, 18 bit, OCT, 24 bit, SIL 2-capable, resolver, single-turn absolute encoder, multi-turn absolute encoder
Cooling: external axial ventilation
Connection technology: M23 speedtec® plug
Ambient temperature (operation): +5…+40 °C
Approvals/markings: CE, cURus in preparation, EAC
The AM8053 standard servomotor is suitable for drive solutions with highest demands on dynamics and performance in the 100…480 V AC voltage range. The standstill torque of the motor depends on the winding and is in the range of 11.4…15.4 Nm. It is available with the OCT feedback system (absolute encoder). The standard servomotor with flange code F5 (104 mm) and motor length 3 has a shaft diameter b = 24 k6 and a free shaft end of d = 50 mm.
| SKU | AM8053-2J20 |
|---|
