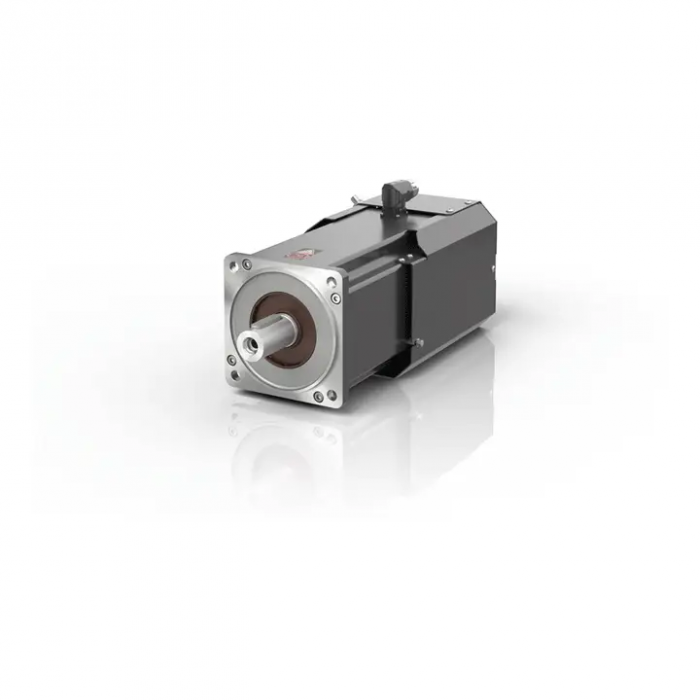

AM8062-0K2B Servomotor 29.9 Nm (M0), F6 (142 mm)
Motor type: permanent magnet-excited three-phase synchronous motor
Nominal voltage: 100…480 V AC
Standstill torque: 29.9 Nm
Rated torque: 26.4 Nm
Peak torque: 74.1 Nm
Rated speed: 1400 min-1
Rated power: 3.87 kW
Standstill current: 8.70 A
Peak current: 27.0 A
Torque constant: 3.40 Nm/A
Rotor moment of inertia: 20.0 kgcm²
Motor feedback: OCT, 18 bit, OCT, 24 bit, SIL 2-capable, resolver, Hiperface, single-turn absolute encoder, multi-turn absolute encoder
Cooling: external axial ventilation
Connection technology: M23 speedtec® plug
Ambient temperature (operation): +5…+40 °C
Approvals/markings: CE, cURus in preparation, EAC
The AM8062 standard servomotor is suitable for drive solutions with highest demands on dynamics and performance in the 100…480 V AC voltage range. The standstill torque of the motor depends on the winding and is in the range of 21.1…29.9 Nm. It is available with the OCT feedback system (absolute encoder). The standard servomotor with flange code F6 (142 mm) and motor length 2 has a shaft diameter b = 32 k6 and a free shaft end of d = 58 mm.
| SKU | AM8062-0K2B |
|---|
