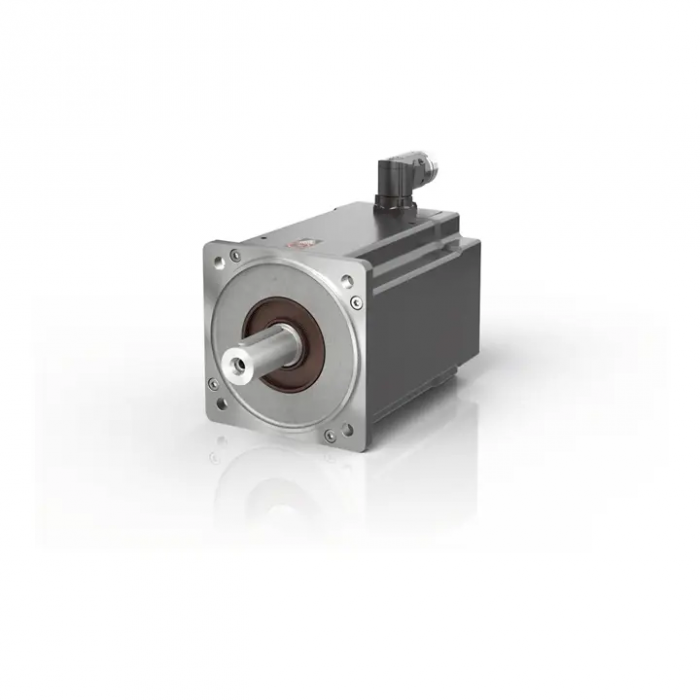

AM8073-0TH0 Servomotor 70.0 Nm (M0), F7 (194 mm)
Motor type: permanent magnet-excited three-phase synchronous motor
Nominal voltage: 100…480 V AC
Standstill torque: 70.0 Nm
Rated torque: 10.8 Nm
Peak torque: 268 Nm
Rated speed: 3000 min-1
Rated power: 3.39 kW
Standstill current: 45.6 A
Peak current: 180 A
Torque constant: 1.53 Nm/A
Rotor moment of inertia: 135 kgcm²
Motor feedback: OCT, 18 bit, OCT, 24 bit, SIL 2-capable, resolver, Hiperface, single-turn absolute encoder, multi-turn absolute encoder
Cooling: convection
Connection technology: M40 speedtec® plug
Ambient temperature (operation): +5…+40 °C
Approvals/markings: CE, cURus, EAC
The AM8073 standard servomotor is suitable for drive solutions with highest demands on dynamics and performance in the 100…480 V AC voltage range. The standstill torque of the motor depends on the winding and is in the range of 70.0…104 Nm. It is available with the OCT feedback system (absolute encoder). The standard servomotor with flange code F7 (194 mm) and motor length 3 has a shaft diameter b = 38 k6 and a free shaft end of d = 80 mm.
| SKU | AM8073-0TH0 |
|---|
